KOGANEI CORPORATION

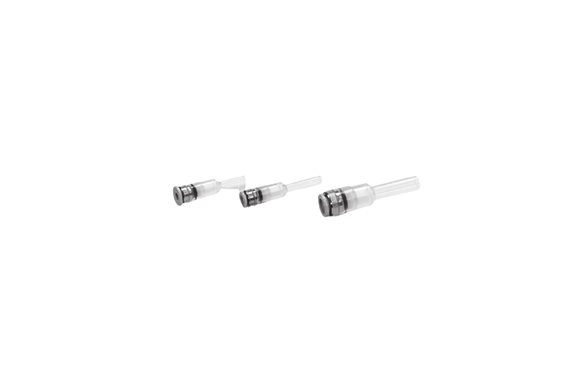

Koganei Socket Filter For Vacuum VSF Series
Manufacturer: KOGANEI CORPORATION
Features
The prefilter works effectively in vacuum lines, ensuring efficient filtration. It is also designed with an integrated filter inside a socket-type fitting, which enhances its performance and ease of use. Additionally, this product accommodates various tube outer diameters: φ3 [0.118], φ4 [0.157], and φ6 [0.236], making it suitable for a wide range of applications. Moreover, the versatility of the prefilter makes it an excellent choice for diverse system configurations, further improving its functionality.
Specifications
| Item | Basic type | VSF-J3 | VSF-J4 | VSF-J6 |
|---|---|---|---|---|
| Medium | Air | |||
| Operating pressure range | kPa [inHg] | -100 to 0 [-29.540 to 0] | -100 to 0 [-29.540 to 0] | -100 to 0 [-29.540 to 0] |
| Operating temperature range | °C [°F] | 0 to 60 [32 to 140] (non-freezing) | 0 to 60 [32 to 140] (non-freezing) | 0 to 60 [32 to 140] (non-freezing) |
| Filtration rating* | µm | 5 | ||
| Particle filtering efficiency | % | 95 | ||
| Filtration area* | cm² [in²] | 0.8 [0.124] | 1.1 [0.171] | 1.1 [0.171] |
| Recommended flow rate** | ℓ/min (ANR) [ft³/min] (SCFM) | 5 [0.177] | 7.5 [0.265] | 11 [0.389] |
| Weight | g [oz] | 1.4 [0.05] | 1.5 [0.05] | 2.5 [0.09] |
