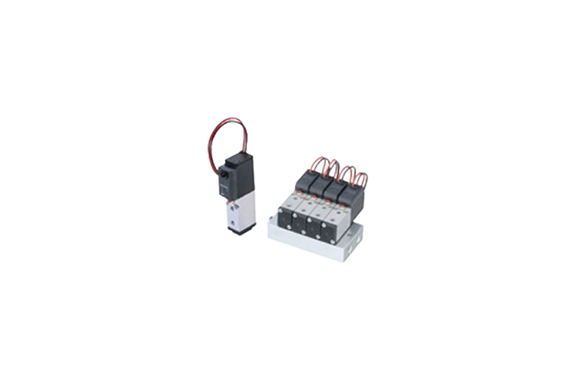

Koganei Solenoid Valve 010 Series

Manufacturer: KOGANEI CORPORATION

Features

The Solenoid Valves 010 series delivers high reliability, powerful action, and low current consumption while maintaining a thin 10 mm (0.394 in.) body width. Because of this compact design, the series fits easily into modern equipment layouts and supports efficient space utilization.

In addition, the valves incorporate flywheel diodes for surge suppression as a standard feature. This integrated protection ensures stable and highly reliable operation, even in systems that experience frequent switching or electrical noise.

Furthermore, the series supports mounting up to 20 valves on a single manifold, which enhances both scalability and installation flexibility. As a result, it meets customer demands for economical operation and diverse system configurations. It also enables smooth and dependable performance for double-acting cylinders with bores up to φ16 (0.630 in.), making it suitable for a wide variety of industrial applications.\

Specifications

Basic model Item	Direct piping, F type manifold	Sub-base piping, A type manifold
Basic model Item	010-4E1	A010-4E1
Media	Air
Operation type	Internal pilot type
Effective area (Cv) (Note 1) mm²	1(P)→4(A) 0.2 (0.01)　4(A)→5(R1), 2(B)→3(R2) 0.3 (0.02)
Port size (Note 2)	M3×0.5
Lubrication	Not required
Operating pressure range MPa (kgf/cm²) [psi.]	0.15〜0.7 (1.5〜7.1) [22〜102]
Proof pressure MPa (kgf/cm²) [psi.]	1.05 (10.7) [152]
Response time (Note 3) ms	DC5V, DC12V 4/8 or below DC6V, DC24V 4/8 or below
Maximum operating frequency Hz	5
Minimum time to energize for self holding ms	—
Operating temperature range (atmosphere and media) °C [°F]	5〜50 [41〜122]
Shock resistance m/s² (G)	1373.0 (140.0) (Axial direction 392.3 (40.0))
Mounting direction	Any
