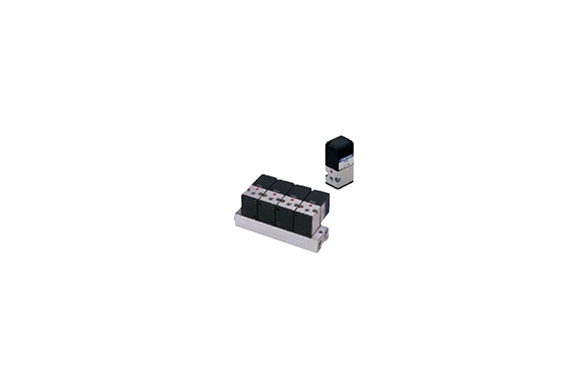

Koganei Solenoid Valve 025 Series
Manufacturer: KOGANEI CORPORATION
Features
The 025 series delivers exceptionally low power consumption at just 0.5W and also uses surge suppression, enabling direct drive by IC chips. Additionally, the control contactors and wiring housing remain compact to support space-efficient designs. Moreover, the extremely low levels of heat and electric noise eliminate the need for countermeasures. As a result, the series supports overall compactness and energy savings for entire systems.
These direct acting solenoid valves provide high reliability, and they work especially well as pilots for large valves. Furthermore, they support direct operation of compact actuators. They also control air bearings and other precision units. In addition, they offer dependable performance for applications across many different fields.
Specifications
| Item | Basic model | |
|---|---|---|
| Direct piping, F type manifold 025E1 | Sub-base piping, A type manifold A025E1 | |
| Media | Air | |
| Operation type | Direct acting type | |
| Number of solenoids | Single solenoid | |
| Number of positions | 2 positions | |
| Number of ports | 2, 3 ports | |
| Effective area (Cv) mm² | 0.5 [0.028] | 0.4 [0.022] |
| Port size | M5 × 0.8 | |
| Lubrication | Not required | |
| Operating pressure range MPa (kgf/cm²) [psi] | 0～0.7 (0～7.1) [0～102] | |
| Proof pressure MPa (kgf/cm²) [psi] | 1.05 (10.7) [152] | |
| Operating temperature range (atmosphere and media) °C [°F] | 5～50 [41～122] | |
| Shock resistance m/s² (G) | 78.5 (8.0) | |
| Mounting direction | Any | |
| Mass g [oz.] | 80 [2.82] | 80 [2.82] (110 [3.88] Note) |
