KOGANEI CORPORATION

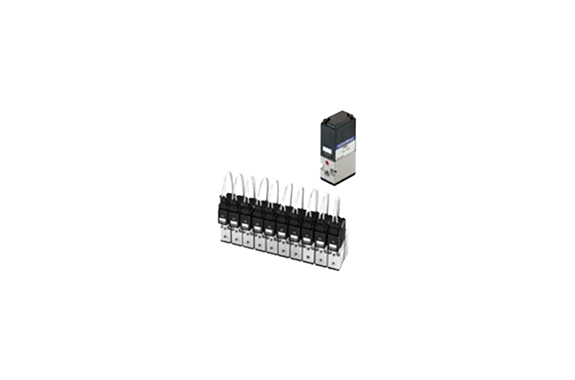

Koganei Solenoid Valve 030 Series
Manufacturer: KOGANEI CORPORATION
Features
This dynamic series uses advanced technology to deliver a lighter and more compact unit while still achieving a significantly larger flow rate. At the same time, it reduces power consumption, which improves overall system efficiency. Additionally, the series provides a wide range of options, including Rc 1/8 specifications and manifolds that support up to 20 units. As a result, it offers excellent expandability and responds effectively to demanding application requirements.
Specifications
| Basic model Item | Direct piping, T, F, F01 type manifolds | 030E1 | 030-4E1 |
|---|---|---|---|
| Media | Air | ||
| Operation type | Direct acting type | Internal pilot type | |
| Effective area (Cv) mm² | 1(P)→2(A) 0.6 (0.03) 2(A)→3(R) 0.8 (0.04) | 1(P)→4(A), 2(B) 0.6 (0.03) 4(A)→5(R1), 2(B)→3(R2) 0.8 (0.04) | |
| Port size (Note) | M5 × 0.8 | ||
| Lubrication | Not required | ||
| Operating pressure range MPa (kgf/cm²) [psi.] | 0〜0.7 (0〜7.1) [0〜102] | 0.15〜0.7 (1.5〜7.1) [22〜102] | |
| Proof pressure MPa (kgf/cm²) [psi.] | 1.05 (10.7) [152] | ||
| Response time ms | DC12V, DC24V 10/25 or belowAC100V, AC200V 15/40 or below | ||
| ON/OFF | |||
| Maximum operating frequency Hz | 5 | ||
| Operating temperature range (atmosphere and media) °C [°F] | 5〜50 [41〜122] | ||
| Shock resistance m/s² (G) | 117.7 (12.0) | ||
| Mounting direction | Any | ||
