KOGANEI CORPORATION

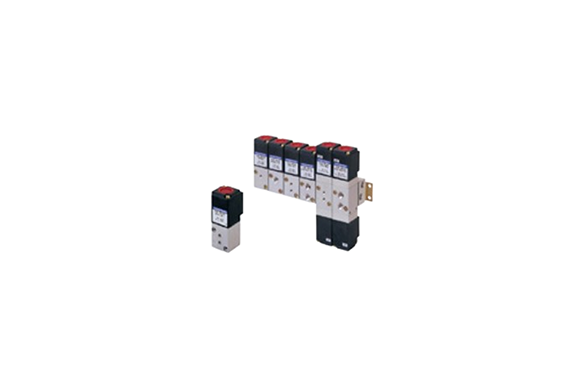

Koganei Solenoid Valve 050 Series
Manufacturer: KOGANEI CORPORATION
Features
This dynamic series uses advanced technology to solve the need for a lighter and more compact unit. Additionally, it delivers a larger flow rate while simultaneously reducing power consumption. It also offers a wide variety of options, including Rc 1/8 specification and manifolds for up to 20 units. Moreover, these features provide excellent expandability, allowing the system to respond effectively to advanced levels of requirements.
Specifications
| Item | Basic model | ||
|---|---|---|---|
| Standard type 050E1 | Low current type 050-4E1 | Low current type 050LE1 | |
| Media | Air | ||
| Operation type | Direct acting type | ||
| Effective area (Cv) mm² | 1.5 (0.08) | 1.2 (0.07) | 1.5 (0.08) |
| Port size | M5 × 0.8 | ||
| Lubrication | Not required | ||
| Operating pressure range MPa (kgf/cm²) [psi] | 0～0.7 [0～102] | 0.15～0.7 [1.5～7.1] [22～102] | 0～0.7 [0～102] |
| Proof pressure MPa (kgf/cm²) [psi] | 1.05 (10.7) [152] | ||
| Response time ms | DC24V 20/20 or below | AC100V, AC200V 25/25 or below | AC100V, AC200V 30/30 or below |
| Maximum operating frequency Hz | 5 | ||
| Operating temperature range (atmosphere and media) °C [°F] | 0～50 [32～122] | ||
| Shock resistance m/s² [G] | Lateral direction 1373.0 (140.0) | 1471.3 (15.0) | 1373.0 (140.0) |
| Mounting direction | Any | ||
