Manufacturer: KOGANEI CORPORATION

Features

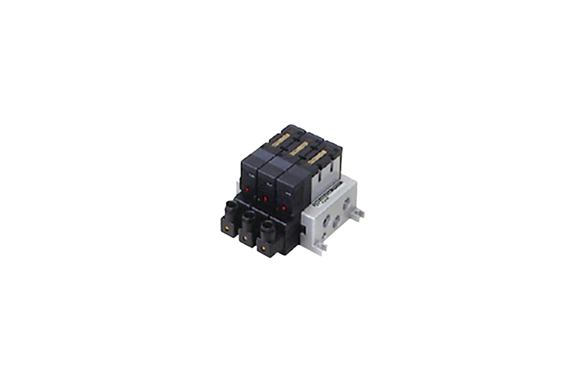

This series supports 5-port, 2-position, and 3-position configurations, and it delivers dependable performance for a wide range of pneumatic applications. Additionally, it offers efficient flow characteristics due to its optimized effective area. The 2-position type provides 40 mm² and 35 mm² options with Cv values of 2.2 and 1.9. Meanwhile, the 3-position type supplies 35 mm² and 30 mm² options with Cv values of 1.9 and 1.7. As a result, users can select the most suitable specification for their required operating conditions.

Moreover, the system accommodates a broad range of cylinder bore sizes. It supports diameters from 50 mm (1.969 in.) to 125 mm (4.921 in.), ensuring compatibility with small, medium, and large cylinders. This flexibility allows engineers to integrate the valves into various designs, and it also simplifies equipment upgrades.

Specifications
