KOGANEI CORPORATION

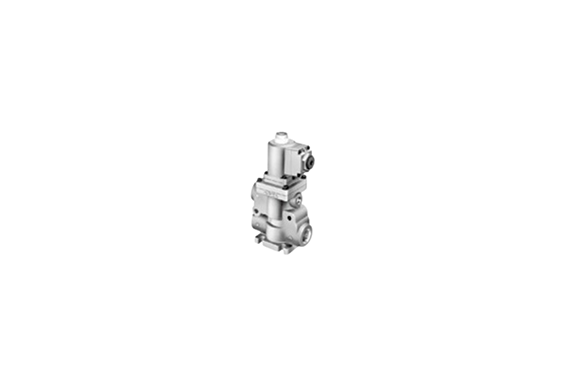

Koganei Solenoid Valve 750 Series Round Type
Manufacturer: KOGANEI CORPORATION
Features
The system delivers high reliability, and it is backed by a long track record of proven success. Moreover, the original poppet system works together with the diaphragm and poppet mechanism to create a highly stable sealing structure. As a result, the integrated design virtually eliminates air leaks, and it consistently maintains dependable performance. Additionally, the mechanism reduces failure risk, and it also enhances long-term durability for demanding operating environments. Consequently, users experience smoother operation, greater efficiency, and lower maintenance requirements.
Specifications
| Item | Model | 750E1-2 | 750E1-2-11 | 750E1 | 750E1-11 | 750-4E1 |
|---|---|---|---|---|---|---|
| Media | Air | |||||
| Operation type | Internal pilot type | |||||
| Effective area (Cv) mm² | 140 (7.0) | 100 (5.0) | ||||
| Port size Rc | 3/4 | |||||
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) or equivalent) | |||||
| Operating pressure range MPa [kgf/cm²] [psi.] | 0.1～0.9 (1.0～9.2) [15～131] | |||||
| Proof pressure MPa [kgf/cm²] [psi.] | 1.35 (13.8) [196] | |||||
| Response time ON/OFF ms | ON | 60 | 140 | |||
| OFF | 120 | 140 | ||||
| Maximum operating frequency Hz | 3 | |||||
| Minimum time to energize for self holding ms | — | |||||
| Operating temperature range (atmosphere and media) °C [°F] | 0～60 [32～140] | |||||
| Mounting direction | Any | |||||
| Mass kg [lb.] | 2.0 [4.4] | 3.5 [7.7] | ||||
