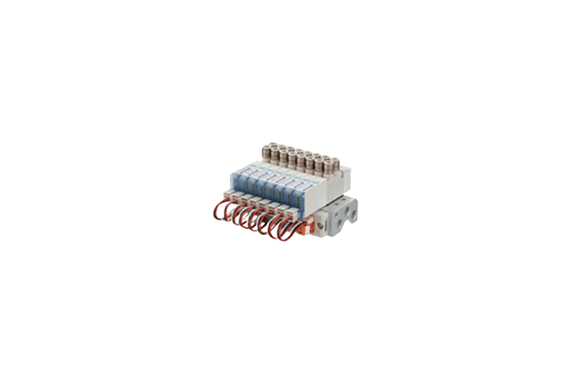

Koganei Solenoid Valve F10 Monoblock PC Board Manifold Direct Piping Type

Manufacturer: KOGANEI CORPORATION

Features

This product supports cylinder bore sizes from 20 to 40 mm (1.575 to 3.150 in.), with a 10 mm (0.394 in.) valve width. Furthermore, the MIL-type 20-pin flat cable offers wire savings while delivering excellent cost performance.

Specifications

Basic Model	F10_T0	F10_T3	F10_T1	F10_T4	F10_TA	F10_T0G	F10_T3G	F10_T1G	F10_T4G	F10_T1V	F10_T5G	F10_T0V	F10_T3V
Media	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air
Lubrication	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required
Operating pressure range	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]	0.2～0.7 MPa [29～102 psi.]
Proof pressure	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]
Operating temperature range	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]
Response time	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms	15/15 ms

Item	12VDC	24VDC	24VDC (Low-current type)	100VAC	120VAC
Voltage range	10.8~13.2 (12±10%)	21.6~26.4 (24±10%)	21.6~26.4 (24±10%)	90~110 (100±10%)	108~132 (120±10%)
Rated frequency	–	–	–	50	60
Current (when rated voltage is applied)	33 (mA r.m.s.)	17 (mA r.m.s.)	8 (mA r.m.s.)	8	8
Power consumption	0.4 (W)	0.4 (W)	0.8 VA	0.8 VA	1 VA
Starting current	–	–	–	17	17
Starting time (standard)	–	–	–	70 ms	70 ms
Allowable leakage current	2.0	1.0	1.0	1.0	1.0
Type of insulation	Type B	Type B	Type B	Type B	Type B
Insulation resistance	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ
Color of LED indicator	14(SA) : Red, 12(SB): Green	14(SA) : Red, 12(SB): Green	14(SA) : Red, 12(SB): Green	14(SA) : Red, 12(SB): Green	14(SA) : Red, 12(SB): Green
Surge suppression	Surge absorption transistor	Flywheel diode	Flywheel diode	Bridge diode	Bridge diode
