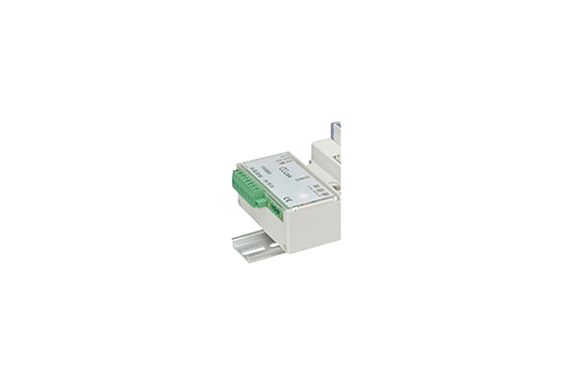

Koganei Solenoid Valve F10 Valve Easy Assembly Type Manifold Serial Transmission in Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore sizes range from 20 to 40 mm (1.575 to 3.150 in.), with a 10 mm (0.394 in.) valve width. This design enables easy addition, removal, and assembly. Moreover, the internal wiring connects seamlessly by linking the manifold bases. Furthermore, it is compatible with serial transmission for enhanced functionality.
Specifications
| Basic Model | F10T0 | F10T1 | F10T2 | F10T3 | F10T4 | F10TA | F10TB | F10TC | F10T0G | F10T3G | F10T1G | F10T4G | F10T1V | F10T2G | F10T5G | F10T0V | F10T3V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Media | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | |
| Operation Type | Sonic conductance C dm³/s(bar) | 0.97 | 0.75 | 0.97 | 0.75 | 0.97 | 0.97 | 0.75 | 0.97 | 0.97 | 0.97 | 0.97 | 0.97 | 0.97 | 0.97 | 0.97 | |
| Effective Area | 8 (0.27) | 8 (0.27) | 10.3 (0.57) | 10.3 (0.57) | 8 (0.44) | 4.6 (0.25) | 4.6 (0.25) | 4.8 (0.27) | 4.8 (0.27) | 4.6 (0.25) | 4.8 (0.27) | 4.8 (0.27) | 4.8 (0.27) | 4.6 (0.25) | 4.6 (0.25) | 4.6 (0.25) | |
| Port Size | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | ||||
| Lubrication | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | ||
| Operating Pressure Range | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | 0.15~0.7 MPa [22~102 psi.] | ||||
| Proof Pressure | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | ||||
| Response Time | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | |||||
| Maximum Operating Frequency | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| Minimum Time to Energize for Self Holding | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |||
| Shock Resistance | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | ||||
| Mounting Direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
| Item | 12VDC | 24VDC | 24VDC (Low-current type) | 100VAC | 120VAC |
|---|---|---|---|---|---|
| Voltage range | 10.8~13.2 (12±10%) | 21.6~26.4 (24±10%) | 21.6~26.4 (24±10%) | 90~110 (100±10%) | 108~132 (120±10%) |
| Rated frequency | – | – | – | 50 | 60 |
| Current (when rated voltage is applied) | 33 (mA r.m.s.) | 17 (mA r.m.s.) | 8 (mA r.m.s.) | 8 | 8 |
| Power consumption | 0.4 (W) | 0.4 (W) | 0.8 VA | 0.8 VA | 1 VA |
| Starting current | – | – | – | 17 | 17 |
| Starting time (standard) | – | – | – | 70 ms | 70 ms |
| Allowable leakage current | 2.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Type of insulation | Type B | Type B | Type B | Type B | Type B |
| Insulation resistance | 100 MΩ | 100 MΩ | 100 MΩ | 100 MΩ | 100 MΩ |
| Color of LED indicator | 14(SA) : Red, 12(SB): Green | 14(SA) : Red, 12(SB): Green | 14(SA) : Red, 12(SB): Green | 14(SA) : Red, 12(SB): Green | 14(SA) : Red, 12(SB): Green |
| Surge suppression | Surge absorption transistor | Flywheel diode | Flywheel diode | Bridge diode | Bridge diode |
