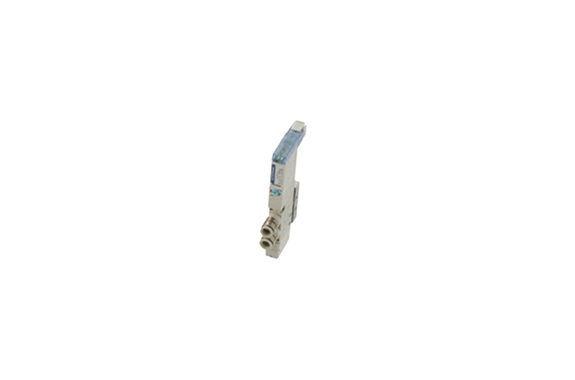

Koganei Solenoid Valve F15 Single Valve Unit

Manufacturer: KOGANEI CORPORATION

Features

The cylinder bore sizes range from 40 to 80 mm (1.575 to 3.150 in.), with a 15 mm (0.591 in.) valve width. Additionally, the solenoid valve operates with low power consumption. It is a versatile, new valve type suitable for both single and double uses. Moreover, a wide range of variations is available, including reducer fittings and more.

Specifications

Basic Model		F15T0 F15T1 F15T2	F15T3 F15T4 F15T5	F15TA F15TB F15TC	F15T0G F15T1G F15T2G	F15T3G F15T4G F15T5G	F15T0V F15T1V F15T2V	F15T3V
Media		Air
Operation Type		Internal pilot type			External pilot type (for positive pressure)		External pilot type (for vacuum)
Flow rate characteristics	Sonic conductance C dm³/s(bar)	2.05	2.05	1.6	2.05	2.05	2.05	2.05
Flow rate characteristics	Effective Area	10.3 (0.57)	10.3 (0.57)	8 (0.44)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)
Port Size		Dual use fitting for φ6 and φ8, Rc1/8, NPT1/8			M5 × 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8
Lubrication		Not Required
Operating Pressure Range	Main valve	0.15–0.7 MPa [22–102 psi.]			0–0.7 MPa [0–102 psi.] Note4		−100 kPa to 0.15 MPa [−29.53 in.Hg to 22 psi.]
Operating Pressure Range	External pilot	—			0.2–0.7 MPa [29–102 psi.] Note4		0.2–0.7 MPa [29–102 psi.]
Proof Pressure		1.05 MPa [152 psi.]
Response Time	12VDC, 24VDC	20/25 (30) or below	15/45 (50) or below	20/30 (35) or below	20/25 (30) or below	15/45 (50) or below	20/25 (30) or below	15/45 (50) or below
Response Time	100VAC	20/25 or below	15/45 or below	—	20/25 or below	15/45 or below	20/25 or below	15/45 or below
Maximum Operating Frequency		5
Minimum Time to Energize for Self Holding		50	—		50	—	50	—
Operating temperature range (atmosphere and media) °C [°F]		5–50 [41–122] Figure in parentheses is for when mounted on the split manifold.
Shock Resistance		294.2 [30]
Mounting Direction		Any
