Manufacturer: KOGANEI CORPORATION

Features

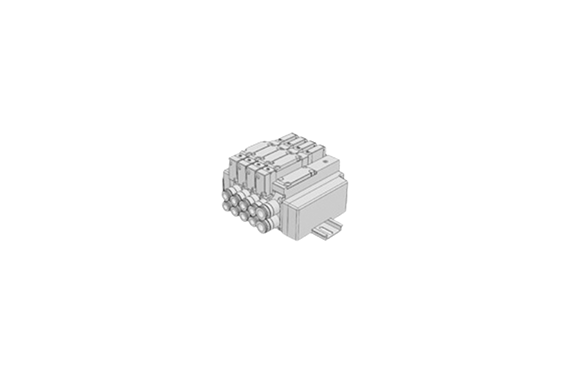

For cylinder bore sizes ranging from 40 to 80 mm (1.575 to 3.150 in.), and a 15 mm (0.591 in.) valve width, this system offers a simple manifold that allows for easy increase or decrease. Moreover, the flexible design accommodates a variable number of units, providing you with the versatility needed for a wide range of applications.

Specifications

<style>
.tbl-wrap{
max-width: 100%;
overflow-x: auto;
margin: 12px 0;
-webkit-overflow-scrolling: touch;
}
table.spec-table{
border-collapse: collapse;
width: 1000px;
font-family: Arial, Helvetica, sans-serif;
font-size: 12.5px;
line-height: 1.3;
background: #fff;
table-layout: fixed;
}
table.spec-table th,
table.spec-table td{
border: 1px solid #444;
padding: 6px 10px;
vertical-align: middle;
word-wrap: break-word;
}
table.spec-table th{
background: #e8eef7;
font-weight: 700;
text-align: center;
}
table.spec-table td{
text-align: center;
}
table.spec-table td.label{
background: #f5f7fa;
font-weight: 700;
text-align: left;
}
table.spec-table td.group{
background: #f0f3f8;
font-weight: 700;
text-align: center;
}
table.spec-table td.sub{
background: #fafbfd;
font-weight: 700;
text-align: left;
width: 185px;
}
</style>

<div class=”tbl-wrap”>
<table class=”spec-table”>
<tbody>
<tr>
<th colspan=”2″>Basic Model</th>
<th>F15T0<br>F15T1<br>F15T2</th>
<th>F15T3<br>F15T4<br>F15T5</th>
<th>F15TA<br>F15TB<br>F15TC</th>
<th>F15T0G<br>F15T1G<br>F15T2G</th>
<th>F15T3G<br>F15T4G<br>F15T5G</th>
<th>F15T0V<br>F15T1V<br>F15T2V</th>
<th>F15T3V</th>
</tr>

<tr>
<td class=”group” colspan=”2″>Media</td>
<td colspan=”7″>Air</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Operation Type</td>
<td colspan=”3″>Internal pilot type</td>
<td colspan=”2″>External pilot type (for positive pressure)</td>
<td colspan=”2″>External pilot type (for vacuum)</td>
</tr>

<tr>
<td class=”group” rowspan=”2″>Flow rate<br>characteristics</td>
<td class=”sub”>Sonic conductance<br>C dm³/s(bar)</td>
<td>2.05</td>
<td>2.05</td>
<td>1.6</td>
<td>2.05</td>
<td>2.05</td>
<td>2.05</td>
<td>2.05</td>
</tr>
<tr>
<td class=”sub”>Effective Area</td>
<td>10.3 (0.57)</td>
<td>10.3 (0.57)</td>
<td>8 (0.44)</td>
<td>10.3 (0.57)</td>
<td>10.3 (0.57)</td>
<td>10.3 (0.57)</td>
<td>10.3 (0.57)</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Port Size</td>
<td colspan=”3″>Dual use fitting for φ6 and φ8, Rc1/8, NPT1/8</td>
<td colspan=”4″>M5 × 0.8, 10-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Lubrication</td>
<td colspan=”7″>Not Required</td>
</tr>

<tr>
<td class=”group” rowspan=”2″>Operating<br>Pressure Range</td>
<td class=”sub”>Main valve</td>
<td colspan=”3″>0.15–0.7 MPa [22–102 psi.]</td>
<td colspan=”2″>0–0.7 MPa [0–102 psi.] Note4</td>
<td colspan=”2″>−100 kPa to 0.15 MPa<br>[−29.53 in.Hg to 22 psi.]</td>
</tr>
<tr>
<td class=”sub”>External pilot</td>
<td colspan=”3″>—</td>
<td colspan=”2″>0.2–0.7 MPa [29–102 psi.] Note4</td>
<td colspan=”2″>0.2–0.7 MPa [29–102 psi.]</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Proof Pressure</td>
<td colspan=”7″>1.05 MPa [152 psi.]</td>
</tr>

<tr>
<td class=”group” rowspan=”2″>Response Time</td>
<td class=”sub”>12VDC, 24VDC</td>
<td>20/25 (30) or below</td>
<td>15/45 (50) or below</td>
<td>20/30 (35) or below</td>
<td>20/25 (30) or below</td>
<td>15/45 (50) or below</td>
<td>20/25 (30) or below</td>
<td>15/45 (50) or below</td>
</tr>
<tr>
<td class=”sub”>100VAC</td>
<td>20/25 or below</td>
<td>15/45 or below</td>
<td>—</td>
<td>20/25 or below</td>
<td>15/45 or below</td>
<td>20/25 or below</td>
<td>15/45 or below</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Maximum Operating Frequency</td>
<td colspan=”7″>5</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Minimum Time to Energize for Self Holding</td>
<td>50</td>
<td colspan=”2″>—</td>
<td>50</td>
<td>—</td>
<td>50</td>
<td>—</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Operating temperature range<br>(atmosphere and media) °C [°F]</td>
<td colspan=”7″>5–50 [41–122] <span style=”font-weight:600;”>Figure in parentheses is for when mounted on the split manifold.</span></td>
</tr>

<tr>
<td class=”group” colspan=”2″>Shock Resistance</td>
<td colspan=”7″>294.2 [30]</td>
</tr>

<tr>
<td class=”group” colspan=”2″>Mounting Direction</td>
<td colspan=”7″>Any</td>
</tr>
</tbody>
</table>
</div>
