Manufacturer: KOGANEI CORPORATION

Features

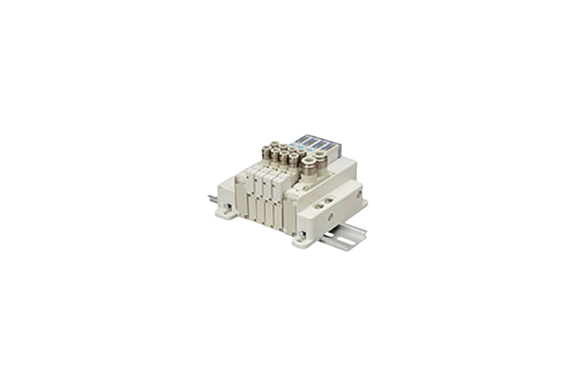

For cylinder bore sizes ranging from 40 to 80 mm (1.575 to 3.150 in.), and with a 15 mm (0.591 in.) valve width, this system facilitates easy addition, removal, and assembly. Specifically, the internal wiring is efficiently connected by simply linking the manifold bases, thus offering improved convenience and flexibility.

Specifications

Basic Model	F15T0	F15T1	F15T2	F15T3	F15T4	F15TA	F15TB	F15TC	F15T0G	F15T3G	F15T1G	F15T4G	F15T1V	F15T5G	F15T0V	F15T3V
Media	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air
Operation Type	Sonic conductance C dm³/s(bar)	2.05	2.05	2.05	1.60	1.60	1.60	1.60	1.60	1.60	1.60	1.60	1.60	1.60	1.60	1.60
Effective Area	10.3 (0.57)	8 (0.44)	10.3 (0.57)	10.3 (0.57)	8 (0.44)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	8 (0.44)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)
Port Size	Dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8	M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8
Lubrication	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required
Operating Pressure Range	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]	0.15～0.7 MPa [22～102 psi.]
Proof Pressure	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]
Response Time	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below	12VDC, 24VDC: 20/25 (30) or below
Maximum Operating Frequency	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
Minimum Time to Energize for Self Holding	50	50	50	50	50	50	50	50	50	50	50	50	50	50
Shock Resistance	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]
Mounting Direction	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any
