KOGANEI CORPORATION

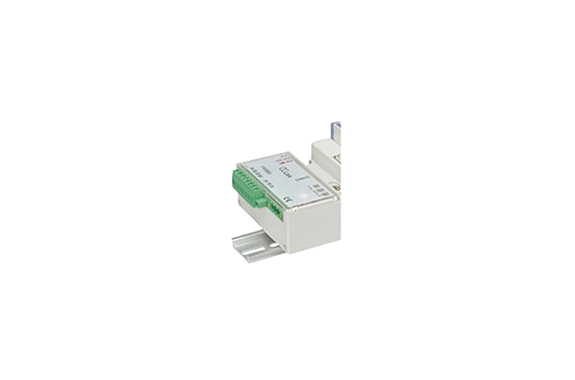

Koganei Solenoid Valve F15 Valve Easy Assembly Type Manifold Serial Transmission Type
Manufacturer: KOGANEI CORPORATION
Features
For cylinder bore sizes ranging from 40 to 80 mm (1.575 to 3.150 in.) and with a 15 mm (0.591 in.) valve width, this system simplifies the process of addition, removal, and assembly. Moreover, the internal wiring is effortlessly connected by linking the manifold bases. Additionally, this system is compatible with serial transmission, ensuring seamless integration.
Specifications
| Basic Model | F15T0 | F15T1 | F15T2 | F15T3 | F15T4 | F15TA | F15TB | F15TC | F15T0G | F15T3G | F15T1G | F15T4G | F15T1V | F15T5G | F15T0V | F15T3V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Media | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | |
| Operation Type | Sonic conductance C dm³/s(bar) | 2.05 | 2.05 | 2.05 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 |
| Effective Area | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | |
| Port Size | Dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | |||
| Lubrication | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | ||
| Operating Pressure Range | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | |||
| Proof Pressure | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | |||
| Response Time | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | ||||
| Maximum Operating Frequency | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Minimum Time to Energize for Self Holding | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
| Shock Resistance | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | |||
| Mounting Direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
