Manufacturer: KOGANEI CORPORATION

Features

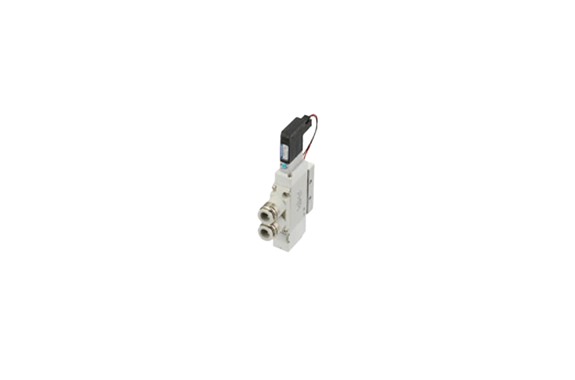

For cylinder bore sizes ranging from 50 to 100 mm (1.969 to 3.937 in.) and an 18 mm (0.709 in.) valve width, this solenoid valve operates with low power consumption. Furthermore, it offers a new type of solenoid valve suitable for both single and double uses. Additionally, a wide range of possible variations is available, such as reducer fittings, among others.

Specifications

Basic model	F18T0	F18T1	F18T2	F18T3	F18T4	F18T0G	F18T1G	F18T2G	F18T3G	F18T4G	F18T1V	F18T2V	F18T3V
Media	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air
Operation Type	Sonic conductance C dm³/s(bar)	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6
Effective Area	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)	18 (0.71)
Port Size	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4	M5 x 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4
Lubrication	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required	Not Required
Operating Pressure Range	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]	0.15~0.7 MPa [22~102 psi.]
Proof Pressure	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]	1.05 MPa [152 psi.]
Response Time	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below	12VDC, 24VDC: 25/35 (20) or below
Maximum Operating Frequency	50	50	50	50	50	50	50	50	50	50	50	50	50
Minimum Time to Energize for Self Holding	50	50	50	50	50	50	50	50	50	50	50	50	50
Shock Resistance	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]	294.2 [30]
Mounting Direction	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any	Any
