KOGANEI CORPORATION

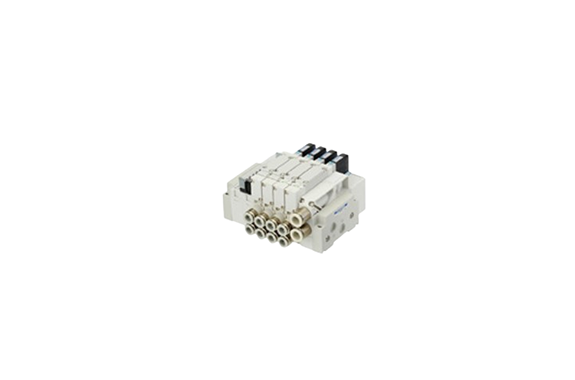

Koganei Solenoid Valve F18 Split Manifold Type Plugin Type
Manufacturer: KOGANEI CORPORATION
Features
This system supports cylinder bore sizes ranging from 50 to 100 mm (1.969 to 3.937 in.) with an 18 mm (0.709 in.) valve width. Additionally, it features a wire-saving type manifold for enhanced efficiency. Furthermore, adding wiring allows for easy adjustments, enabling simple manifold expansion or reduction.
Specifications
| Basic Model | F18T0 F18T1 F18T2 | F18T3 F18T4 F18T5 | F18T0G F18T1G F18T2G | F18T3G F18T4G F18T5G | F18T0V F18T1V F18T2V | F18T3V | |
|---|---|---|---|---|---|---|---|
| Media | Air | ||||||
| Operation Type | Internal pilot type | External pilot type (for positive pressure) | External pilot type (for vacuum) | ||||
| Flow rate characteristics | Sonic conductance C dm³/s(bar) | 3.6 | |||||
| Effective Area | 18 (1) | ||||||
| Port Size | Dual use fitting for φ8 and φ10, Rc1/4, NPT1/4 | M5 × 0.8, 10-32UNF, dual use fitting for φ8 and φ10, Rc1/4, NPT1/4 | |||||
| Lubrication | Not Required | ||||||
| Operating Pressure Range | Main valve | 0.15–0.7 MPa [22–102 psi.] | 0–0.7 MPa [0–102 psi.] Note4 | −100 kPa to 0.15 MPa [−29.53 in.Hg to 22 psi.] | |||
| External pilot | — | 0.2–0.7 MPa [29–102 psi.] Note4 | 0.2–0.7 MPa [29–102 psi.] | ||||
| Proof Pressure | 1.05 MPa [152 psi.] | ||||||
| Response Time | 12VDC, 24VDC | 25/35 or below | 15/70 or below | 25/35 or below | 15/70 or below | 25/35 or below | 15/70 or below |
| 100VAC | 25/35 or below | 15/70 or below | 25/35 or below | 15/70 or below | 25/35 or below | 15/70 or below | |
| Maximum Operating Frequency | 5 | ||||||
| Minimum Time to Energize for Self Holding | 50 | — | 50 | — | 50 | — | |
| Operating temperature range (atmosphere and media) °C [°F] | 5–50 [41–122] | ||||||
| Shock Resistance | 1373 [140] | 294.2 [30] (Axial direction 294.2 [30]) | 1373 [140] | 294.2 [30] (Axial direction 294.2 [30]) | 1373 [140] | 294.2 [30] (Axial direction 294.2 [30]) | |
| Mounting Direction | Any | ||||||
