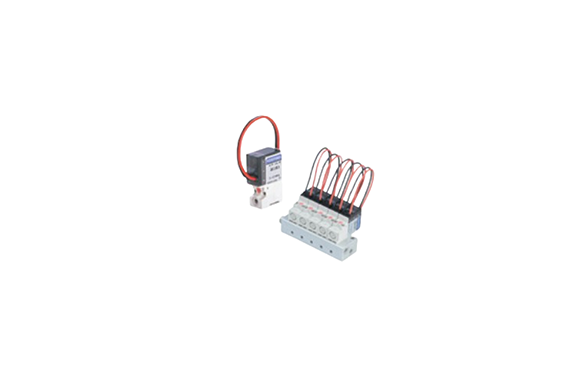

Koganei Solenoid Valve G010 Series

Manufacturer: KOGANEI CORPORATION

Features

In response to growing and diversified control requirements, our new line-up now includes positive pressure normally open (NO) specifications and vacuum specifications. Moreover, this expanded selection allows you to choose the ideal control system with confidence. As a result, you can optimize your production line machinery more easily. Additionally, you can upgrade your equipment with solutions that match your exact operating needs.

Specifications

Item	Basic model Direct piping, F type manifold			A type manifold
Item	G010E1 (standard)	G010LE1 (low current)	G010HE1 (large flow)	GA010E1 (standard)	GA010LE1 (low current)	GA010HE1 (large flow)
Media	Air
Media	Direct acting type
Operation type	1(P)→2(A)	0.2 (0.011)	0.45 (0.025)	0.2 (0.011)	0.16 (0.006)	0.45 (0.025)
Effective area (Cv) mm²	2(A)→3(R)	0.3 (0.017)	0.6 (0.033)	0.3 (0.017)	0.2 (0.011)	0.6 (0.033)
Effective area (Cv) mm²	Port size: M5×0.8			Port size: M5×0.8
Lubrication	Not required
Operating pressure range MPa [kgf/cm²] [psi]	0～0.7 MPa (0～7.1 kgf/cm²) [0～102 psi]
Operating pressure range MPa [kgf/cm²] [psi]	—
Proof pressure	1.05 MPa (10.7 kgf/cm²) [152 psi]
Response time (ON/OFF) ms	4/8	5/10	3/6	4/8	5/10	3/6
Response time (ON/OFF) ms	Maximum operating frequency: 5 Hz
Operating temperature range	5～50°C [41～122°F]
Shock resistance m/s² (G)	1373.0 (140.0) (Axial direction 196.2 (20.0))
Rated voltage	(DC5V, DC6V) DC12V, DC24V AC100V, (AC200V)	(DC5V, DC6V) DC12V, DC24V	(DC12V) DC24V	(DC5V, DC6V) DC12V, DC24V AC100V, (AC200V)	(DC5V, DC6V) DC12V, DC24V	(DC12V) DC24V
Mounting direction	Any

Item	Basic model Direct piping, F type manifold			A type manifold
Item	G010E1-11 (standard)	G010LE1-11 (low current)	G010HE1-11 (large flow)	GA010E1-11 (standard)	GA010LE1-11 (low current)	GA010HE1-11 (large flow)
Media	Air
Media	Direct acting type
Effective area (Cv) mm²	2(A)→1(P)	0.3 (0.017)	0.15 (0.008)	0.55 (0.031)	0.30 (0.017)	0.15 (0.008)	0.55 (0.031)
Effective area (Cv) mm²	3(R)→2(A)	0.2 (0.011)	0.45 (0.025)	0.45 (0.025)	0.20 (0.011)	0.20 (0.011)
Port size	M3×0.5			M5×0.8
Lubrication	Not required
Operating pressure range MPa [kgf/cm²] [psi]	0～0.7 (0～7.1) [0～102]			0～0.7 (0～7.1) [0～102]
Operating pressure range MPa [kgf/cm²] [psi]	0～−0.05 (0～−0.5) [0～−7.3]			0.0～−0.5 (0～−5.1) [0～−73]
Proof pressure	1.05 (10.7) [152]
Response time ms ON/OFF	4/8	5/10	3/6	4/8	5/10	3/6
Response time ms ON/OFF	Maximum operating frequency 5 Hz
Operating temp range	5～50 °C [41～122 °F]
Shock resistance	1373.0 (140) (Axial direction 196.2 (20.0))
Rated voltage	(DC5V, DC6V) DC12V, DC24V AC100V, (AC200V)	(DC5V, DC6V) DC12V, DC24V	(DC12V) DC24V	(DC5V, DC6V) DC12V, DC24V AC100V, (AC200V)	(DC5V, DC6V) DC12V, DC24V	(DC12V) DC24V
Mounting direction	Any
Air supply port	3(R) port
