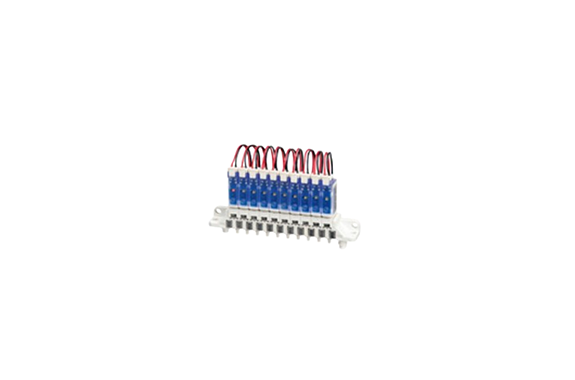

Koganei Solenoid Valve Micro 3-Port 005 Series

Manufacturer: KOGANEI CORPORATION

Features

The 5.9 mm (0.232 in) valve width and 0.1 mm² (0.0002 in²) effective area create an ultra-compact 3-port solenoid valve. Moreover, this design significantly reduces overall device size. Additionally, it makes the entire unit lighter in weight. As a result, engineers can achieve compact layouts without sacrificing performance.

Specifications

Specifications	Model	A type Base piping		B type Split manifold, direct piping block mount type
Specifications	Model	A005E1-□ (Standard type)	A005HE1-□ (Large flow rate type)	B005E1-□ (Standard type)	B005HE1-□ (Large flow rate type)
Number of positions		2 positions
Number of ports		3 ports
Valve function		Normally closed (NC)
Medium		Air
Operating method		Direct acting type
Flow characteristics	Sonic conductance dm³/(s·bar)	0.02	0.04	0.02	0.04 (when J3 is mounted: 0.036)
Flow characteristics	Effective cross-sectional area (Cv value) mm² [Cv]	0.1 [0.006]	0.2 [0.011]	0.1 [0.006]	0.2 [0.011] (when J3 is mounted: 0.18 [0.010])
Port size Note 2		–	Split manifold	1 (P), 3 (R): φ6 [0.236] (barb fitting), 2 (A): φ3.2 [0.126], 4 (B): φ4 [0.157] (barb fitting)	Direct piping block φ3 [0.118], φ3.2 [0.126] (barb fitting)
Lubrication		Not required
Operating pressure range MPa [psi]		0 to 0.7 [0 to 102] Note 3	0 to 0.3 [0 to 44]	0 to 0.7 [0 to 102]	0 to 0.3 [0 to 44]
Proof pressure MPa [psi]		1.05 [152]	0.45 [65]	1.05 [152]	0.45 [65]
Response time (ON/OFF time) ms		6/6 or less	6/6 or less	6/6 or less	6/6 or less
Maximum operating frequency Hz		10	5	10	5
Operating temperature range (atmosphere and medium) °C [°F]		5 to 50 [41 to 122]
Shock resistance m/s² [G]		294.2 [30]	Split manifold 294.2 [30] (for 10 stations or fewer), 196.1 [20] (for 11 stations or more)	Direct piping block 294.2 [30]	294.2 [30]
Mounting direction		Any
