Manufacturer: KOGANEI CORPORATION

Features

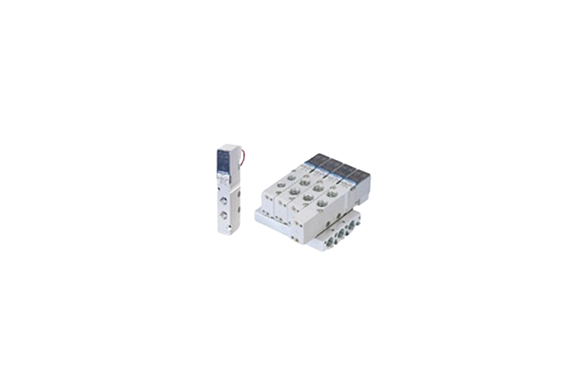

The valve delivers large flow rates with an effective area of 36 mm² (Cv 2.0), and at the same time it maintains exceptional space efficiency with a compact width of only 23.8 mm (0.937 in.). Moreover, users can select either a 25 mm² (Cv 1.4) or a 36 mm² (Cv 2.0) effective area while keeping the same outer dimensions, which consequently provides flexible performance options and consistently low air consumption. Therefore, this design supports efficient operation in tight installation spaces and ensures reliable airflow across a wide range of applications. Ultimately, it helps improve productivity and reduce operating costs.

In addition, the system achieves remarkably low power consumption of just 1 W (DC24V) while still maintaining a strong flow rate. Furthermore, it uses a DC 24V coil specification with bridge diodes built into the internal circuit, which enables stable wiring connections without requiring polarity checks, unlike AC coils. As a result, installation becomes easier, maintenance tasks become faster, and overall system reliability improves significantly. Similarly, users benefit from fewer wiring errors and simplified setup procedures.

The valve also offers high performance and flexible adaptability. For example, operators can switch 2-position double solenoid valves to single solenoid valves when needed, which in turn helps optimize system configuration. Additionally, they can convert external pilot types to internal pilot types on PB series models, allowing better control integration and greater design freedom. Moreover, the design uses a compact and highly reliable solenoid valve as a pilot valve, and users can replace it easily by simply opening the valve body cover. Consequently, this modular structure improves serviceability, reduces downtime, and ultimately increases system uptime.

Specifications
