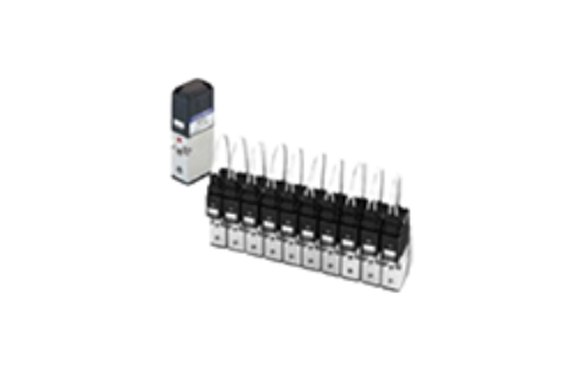

Koganei Solenoid Valves 030 Series
Manufacturer: KOGANEI CORPORATION
Features
This series leverages advanced technology to address common challenges related to compact configuration, increased flow volume, and reduced electrical current. As a result, it provides efficient solutions that improve system performance and energy savings. Moreover, the optimized design ensures a smaller footprint while maintaining enhanced capabilities.
Specifications
| Item | Basic model | ||
|---|---|---|---|
| CS-030E1 | CS-030-4E1 | CS-V030E1 | |
| For direct piping, T, F, F01 type manifolds | For direct piping, T, F, F01 type manifolds | ||
| Number of positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 2, 3 ports | 5 ports | 2, 3 ports |
| Valve function | Normally closed (NC) | Single solenoid | Normally closed (NC) |
| Media | Air | Internal pilot type | Vacuum |
| Operation type | Direct acting type | Internal pilot type | Direct acting type |
| Effective area (Cv) | 1(P)→2(A)0.60, 0.63 | 1(P)→2(A)0.60, 0.63 | 1(P)→2(A)0.60, 0.63 |
| Port size | M5×0.8 | M5×0.8 | M5×0.8 |
| Lubrication | Not required | Not required | Not required |
| Operating pressure range | 0~0.7 MPa [0~102 psi] | 0.15~0.7 MPa [22~102 psi] | ~100kPa [~0~-29.55 in.Hg·0] |
| Proof pressure | 1.05 MPa [152 psi] | 1.05 MPa [152 psi] | Not required |
| Response time | DC12V, DC24V: 10/25 ms | DC12V, DC24V: 10/25 ms | DC12V, DC24V: 15/40 ms |
| ON/OFF | AC100V, AC200V: 15/40 ms | AC100V, AC200V: 15/40 ms | AC100V, AC200V: 15/40 ms |
| Maximum operating frequency | 5 Hz | 5 Hz | 5 Hz |
| Operating temperature range (atmosphere and media) | 5~50°C [41~122°F] | 5~50°C [41~122°F] | 5~50°C [41~122°F] |
| Shock resistance | 117.7 m/s² [12 G] | 117.7 m/s² [12 G] | 117.7 m/s² [12 G] |
| Mounting direction | Any | Any | Any |
