KOGANEI CORPORATION

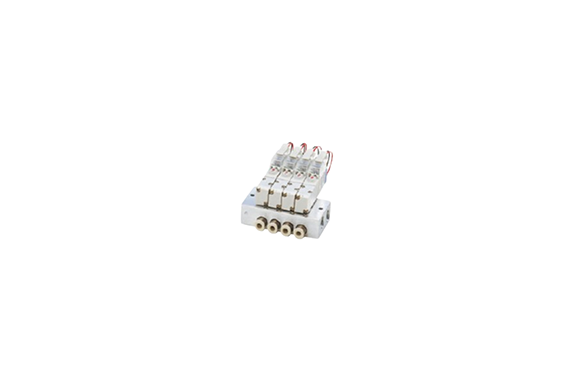

Koganei EB Series Solenoid Valves
Manufacturer: KOGANEI CORPORATION
Model: EB Series
Features
This solenoid valve is designed for cylinder bore sizes up to 25 mm (0.984 in) with a compact 10 mm (0.394 in) valve width. It offers low power consumption options, with the standard type consuming 0.55 W and the low current type at 0.15 W. Additionally, a high-response type is also available, providing flexibility to meet various operational needs.
Specifications
| Item | Basic model | ||||
|---|---|---|---|---|---|
| CS-EB10-F1 | CS-EB10-F2 | CS-EB10-F3 | CS-EB10-F4 | CS-EB10-A1 | |
| For direct piping, FE type manifold | For base piping, A, AJ type manifolds | ||||
| Number of positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports | 2, 3 ports |
| Valve function | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO | Single solenoid NC, NO |
