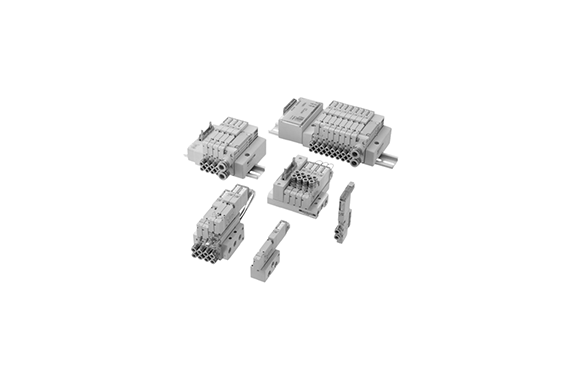

Koganei Solenoid Valves F15 Series

Manufacturer: KOGANEI CORPORATION

Features

1 Single or double dual use valve
● With the F series 2-position valves, you can use a manual override to select either the single solenoid valve or the double solenoid valve function.

2 Employs dual use fittings
● Koganei’s unique dual-use fittings can be connected to two different types of tubes with differing outer diameters.
● No need to waste time selecting fittings based on the tube size.

Mountable tube sizes:
F10 series: φ4 and φ6
F15 series: φ6 and φ8
F18 series: φ8 and φ10
3 Allows the fitting block to be changed for either base piping or direct piping
● Since the direction of the fitting blocks can be changed after purchase, the user is free to change the piping direction.

Specifications

Item	Basic model
Item	F15□T0 F15□T1 F15□T2	F15□T3 F15□T4 F15□T5	F15□TA F15□TB F15□TC	F15□T0G F15□T1G F15□T2G	F15□T3G F15□T4G F15□T5G	F15□T0V F15□T1V F15□T2V	F15□T3V
Media	Air
Operation type	Internal pilot type			External pilot type (for positive pressure)					External pilot type (for vacuum)
Sonic conductance C dm³/s·bar	2.05	2.05	1.60	2.05	2.05	2.05	2.05	2.05	2.05	2.05	2.05	2.05	2.05
Effective area mm² (Cv)	10.3 (0.57)	10.3 (0.57)	8.0 (0.44)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)	10.3 (0.57)
Port size	M5 × 0.8, 10-32UNF, dual-use fitting for φ6 & φ8, Rc1/8, NPT1/8
Lubrication	Not required
Operating pressure range MPa [psi]	0.15～0.7 [22～102]	0.15～0.7	0.15～0.7	0～0.7 [0～102]	0～0.7	0～0.7	0～0.7	0～0.7	−100 kPa～0.15 MPa [−29.53 in.Hg～22 psi]	0.2～0.7 MPa [29～102]
Proof pressure MPa [psi]	1.05 [152]
Response time ms	12VDC, 24VDC: 20/25/30 or below 100VAC: 20/25 or below
ON/OFF	20/25 or below
Maximum operating frequency	5 Hz
Minimum time to energize for self-holding ms	50
Operating temperature range °C [°F]	5～50 [41～122]
Shock resistance m/s² [G]	294.2 [30]
Mounting direction	Any
