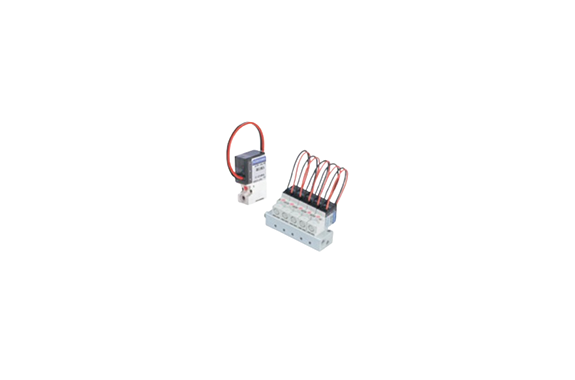

Koganei Solenoid Valves G010 Series
Manufacturer: KOGANEI CORPORATION
Features
In response to diverse control requirements, our new product line includes both positive pressure normally open (NO) specifications and vacuum specifications. This flexibility allows you to select the best control system for your production line machinery and equipment, ensuring optimal performance.
Specifications
| Item | G010E1-11 (standard) | G010E1-11 (low current) | G010E1-11 (large flow) | GA010E1-11 (standard) | GA010E1-11 (low current) | GA010E1-11 (large flow) |
|---|---|---|---|---|---|---|
| Number of positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions | 2 positions |
| Number of ports | 3, 2 ports | 3, 2 ports | 3, 2 ports | 3, 2 ports | 3, 2 ports | 3, 2 ports |
| Valve function | Normally closed (NC, standard) or Normally open (NO, option) | Normally closed (NC, standard) or Normally open (NO, option) | Normally closed (NC, standard) or Normally open (NO, option) | Normally closed (NC, standard) or Normally open (NO, option) | Normally closed (NC, standard) or Normally open (NO, option) | Normally closed (NC, standard) or Normally open (NO, option) |
| Effective area (Cv) | mm² [in²]: 0.2 [0.011] | mm² [in²]: 0.2 [0.011] | mm² [in²]: 0.45 [0.025] | mm² [in²]: 0.2 [0.011] | mm² [in²]: 0.2 [0.011] | mm² [in²]: 0.45 [0.025] |
| Port size | M3 × 0.5 | M3 × 0.5 | M3 × 0.5 | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 |
| Lubrication | Not required | Not required | Not required | Not required | Not required | Not required |
| Operating pressure range | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] | MPa [kgf/cm²] [psi]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53] |
| External pilot pressure | Recommended pilot air pressure: 0.2 ~ 0.3 MPa [29 ~ 44psi] MAX. 0.7 MPa [102psi] | Pilot vacuum: 51 ~ 100kPa [14.96 ~ 29.53in.Hg] | Recommended pilot air pressure: 0.2 ~ 0.3 MPa [29 ~ 44psi] MAX. 0.7 MPa [102psi] | Recommended pilot air pressure: 0.2 ~ 0.3 MPa [29 ~ 44psi] MAX. 0.7 MPa [102psi] | Recommended pilot air pressure: 0.2 ~ 0.3 MPa [29 ~ 44psi] MAX. 0.7 MPa [102psi] | Recommended pilot air pressure: 0.2 ~ 0.3 MPa [29 ~ 44psi] MAX. 0.7 MPa [102psi] |
| Operating temperature range | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] |
| Voltage type | Standard AC100 (50/60Hz), AC200 (50/60Hz) For other voltages, see p.960. | |||||
| Voltage fluctuations | ±10 | |||||
| Current** | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 | AC100V: 50Hz ~ 60Hz, +10%, -0.13 AC200V: 50Hz ~ 60Hz, +10%, -0.065 |
| Energizing type | Continuous energizing | |||||
| Insulation type | B type | |||||
| Wiring connection type | Lead wire length: Approximately 300 [11.8] | |||||
| Mounting direction | Any | |||||
| Mass | kg [lb.]: 0.85 [1.87] | kg [lb.]: 0.85 [1.87] | kg [lb.]: 0.95 [2.09] | kg [lb.]: 0.95 [2.09] | kg [lb.]: 0.95 [2.09] | kg [lb.]: 0.95 [2.09] |
