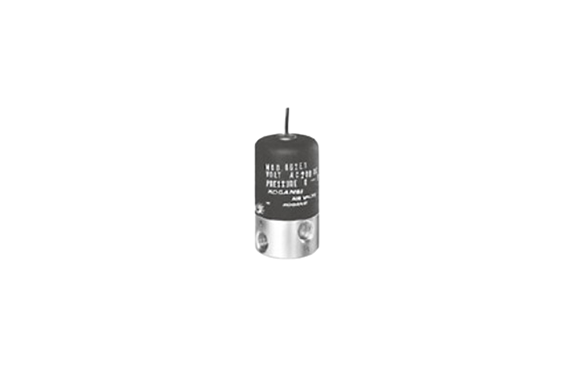

Koganei Solenoid Valves Round Type 062 Series Direct Acting 2-, 3-, 4-Port
Manufacturer: KOGANEI CORPORATION
Features
High reliability comes from a long and proven track record of success, and it consistently delivers stable performance. Moreover, the original poppet system and the diaphragm-and-poppet design work together to virtually eliminate air leaks. As a result, the valve maintains dependable sealing, and it continues to support efficient and trouble-free operation.
Specifications
Item Model | 062E1-2 | 062E1-2-11 | 062E1 | 062E1-11 | 062-4E1 | 062E2-2 | 062E2 | 062-4E2 | 062SE2-2 | 062SE2 | 062-4SE2 |
| Media | Air | ||||||||||
| Operation type | Direct acting | ||||||||||
| Effective area (Cv) | 2.5 (0.12) | 2.5 (0.12) | 1.8 (0.08) | 1.8 (0.08) | 2.5 (0.12) | 2.5 (0.12) | 1.8 (0.08) | 1.8 (0.08) | 2.5 (0.12) | 2.5 (0.12) | 1.8 (0.08) |
| Port size | Rc 1/4 | ||||||||||
| Lubrication | Not required | ||||||||||
| Operating pressure range MPa (kgf/cm²) [psi] | 0~0.9 (0~9.2) [0~131] | ||||||||||
| Proof pressure MPa (kgf/cm²) [psi] | 1.35 (13.8) [196] | ||||||||||
| Response time ON/OFF (ms) | ON | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| OFF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Maximum operating frequency Hz | 5 | ||||||||||
| Minimum time to energize for self holding | 50 | ||||||||||
| Operating temperature range °C [°F] | 0~60 [32~140] | ||||||||||
| Mounting direction | Any | ||||||||||
| Mass (kg [lb]) | 0.3 [0.66] | 0.3 [0.66] | 0.5 [1.1] | 0.5 [1.1] | 0.4 [0.88] | 0.4 [0.88] | 0.4 [0.88] | 0.4 [0.88] | 0.4 [0.88] | 0.4 [0.88] | 0.4 [0.88] |
