KOGANEI CORPORATION

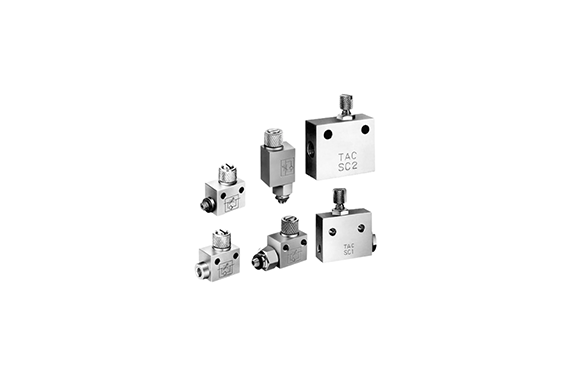

Koganei Speed Controllers SC Series M5 × 0.8, Rc 1/8
Manufacturer: KOGANEI CORPORATION
Features
These units are compact and lightweight, making them perfect for Pen Cylinders, Jig Cylinders, and Slim Cylinders. As a result, they offer maximum efficiency in tight spaces. Additionally, the straight and L types provide flexible mounting in any direction. This allows for easy adaptation to various installation needs. Furthermore, the union type offers the advantage of allowing piping and needle settings in any direction, enhancing versatility in setup.
Specifications
| Item | Model | |||||
|---|---|---|---|---|---|---|
| SC0 | SC0-F | SC0-US | SC0-UL | SC1 | SC2 | |
| Piping type | Female thread | Male thread | Union male thread | Straight | Elbow | Female thread |
| Port size | M5 X 0.8 / Rc1/8 | |||||
| Operating pressure range | MPa [psi]: 0 ~ 0.9 [0 ~ 131] | |||||
| Proof pressure | MPa [psi]: 1.32 [191] | |||||
| Cracking pressure | MPa [psi]: 0.05 [7.3] / 0.04 [5.8] / 0.03 [4.4] | |||||
| Operating temperature range | °C [°F]: 5 ~ 60 [41 ~ 140] | |||||
| Mass | g [oz]: 30 [1.06] | 35 [1.23] | 31 [1.27] | 88 [3.10] | 55 [1.94] | |
