- Koganei Speed Controllers SCL Series Male thread, R1/8, R1/4 Female thread, Rc1/8, Rc1/4
KOGANEI CORPORATION

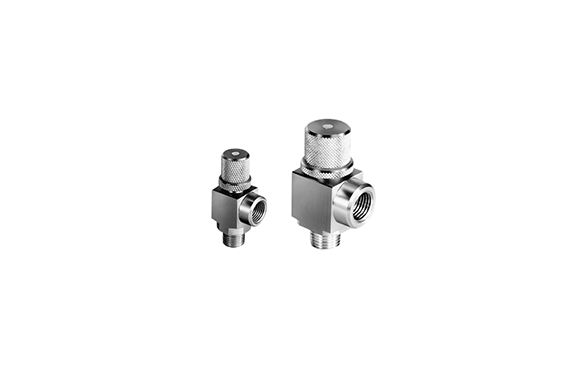

Koganei Speed Controllers SCL Series Male thread, R1/8, R1/4 Female thread, Rc1/8, Rc1/4
Manufacturer: KOGANEI CORPORATION
Features
This unit is compact and lightweight, making it ideal for Slim Cylinders and similar applications. It also enables a direct connection to cylinder ports, eliminating the need for extra piping and materials. Additionally, the unit allows for L-shaped piping installation, which helps save space. As a result, the setup remains compact while improving system efficiency.
Specifications
| Item | Model | |
|---|---|---|
| SCL1 | SCL2 | |
| Mounting type | Male thread specification, enabling direct cylinder mounting | Female thread A: female thread Rc1/4 |
| Port size | F1/8 | Controlled flow P: male thread Rc1/8 |
| Media | Air | |
| Operating pressure range | MPa [psi]: 0 ~ 0.9 [0 ~ 131] | |
| Proof pressure | MPa [psi]: 1.32 [191] | |
| Cracking pressure | MPa [psi]: 0.06 [8.7] | |
| Operating temperature range | °C [°F]: 5 ~ 60 [41 ~ 140] | |
| Mass | g [oz]: 46 [1.62] | 125 [4.41] |
| Materials | Needle: Stainless steel | Seal: Synthetic rubber (NBR) |
| Body | Brass (nickel plated) | |
