KOGANEI CORPORATION

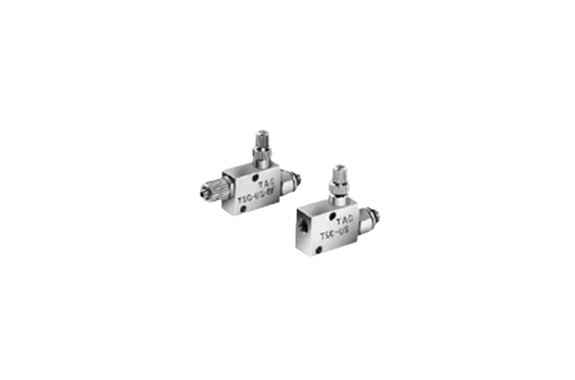

Koganei Speed Controllers TSC Series M5 × 0.8, With Clamp Fitting
Manufacturer: KOGANEI CORPORATION
Features
These units are compact, lightweight, and ideal for use with Pen Cylinders and Jig Cylinders, ensuring efficient operation in tight spaces. Moreover, a wide variety of products is available, allowing for mounting in any direction to suit your specific needs. Additionally, both straight and L types offer a range of piping directions, providing flexibility in installation.
Specifications
| Item | Model | ||||||
|---|---|---|---|---|---|---|---|
| TSC | TSC-F | TSC-F-BF | TSC-US | TSC-US-BF | TSC-L | TSC-L-BF | |
| Piping type and port size | Controlled flow P | Female thread M5 X 0.8 | Male thread M5 X 0.8 | Union male thread M5 X 0.8 | For urethane tube φ4×2.5 Clamp fitting | Female thread M5 X 0.8 | For urethane tube φ4×2.5 Clamp fitting |
| Media | Air | ||||||
| Operating pressure range | MPa [psi]: 0 ~ 0.9 [0 ~ 131] | ||||||
| Proof pressure | MPa [psi]: 1.32 [191] | ||||||
| Cracking pressure | MPa [psi]: 0.05 [7.3] | ||||||
| Operating temperature range | °C [°F]: 5 ~ 60 [41 ~ 140] | ||||||
| Mass | g [oz]: 16 [0.56] | 18 [0.63] | 20.5 [0.72] | 19 [0.67] | 21.5 [0.76] | 15 [0.53] | 17 [0.60] |
