KOGANEI CORPORATION

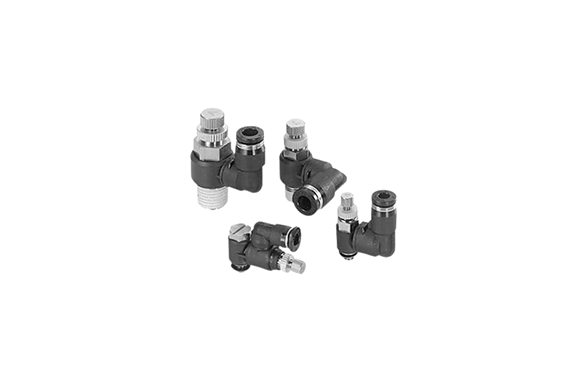

Koganei Speed Controllers With Quick Fittings Free Type
Manufacturer: KOGANEI CORPORATION
Features
Can be rotated on the A, B (or C) axes, enabling any piping direction.
Specifications
| Item | Model | Free type | Free type for low pressure | Horizontal free type | Horizontal free type for low pressure |
|---|---|---|---|---|---|
| Media | Air (Cannot be used in vacuum systems) | ||||
| Operating pressure range | MPa [psi] | 0～0.9MPa [0～131psi] | 0～0.5MPa [0～73psi] | 0～0.9MPa [0～131psi] | 0～0.5MPa [0～73psi] |
| Cracking pressure | MPa [psi] | 0.05MPa [7psi] | 0.02MPa [3psi] | 0.05MPa [7psi] | 0.02MPa [3psi] |
| Operating temperature range | °C [°F] | 0～60°C [32～140°F] | |||
| Recommended tube | Nylon tube, urethane tube | ||||
| Sales unit | 1 pc. | ||||
