KOGANEI CORPORATION

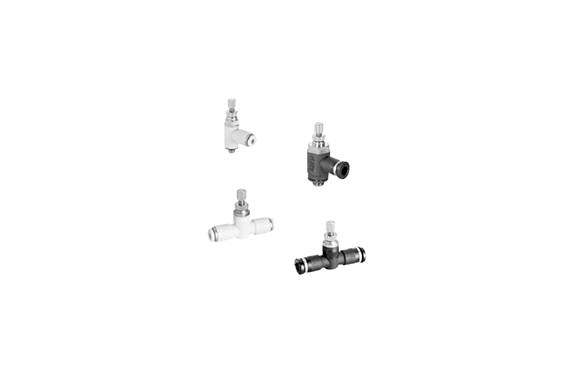

Koganei Speed Controllers With Quick Fittings Low Speed Control Type
Manufacturer: KOGANEI CORPORATION
Features
Speed controllers with quick fittings now available in new size of φ1.8mm [0.071in.].
More variation, with seven models available for φ1.8mm [0.071in.], φ3mm [0.118in.], and φ4mm [0.157in.] tubes.
Offers best match for compact cylinders (Mini Guide Cylinders, Mini Bit Cylinders, etc.).
Specifications
| Item | Applicable tube size mm [in.] | φ1.8 [0.071] | φ3 [0.118] | φ4 [0.157] |
|---|---|---|---|---|
| Media | (Can not be used in vacuum system) | Air | ||
| Operating pressure range | MPa [psi] | 0～0.9MPa [0～131psi] | ||
| Cracking pressure | MPa [psi] | 0.05MPa [7.3psi] | ||
| Operating temperature range | °C [°F] | 0～60°C [32～140°F] | ||
| Recommended tube | Urethane tube | Urethane tube, soft nylon tube, nylon tube | ||
| Sales unit | 1 pc. | |||
