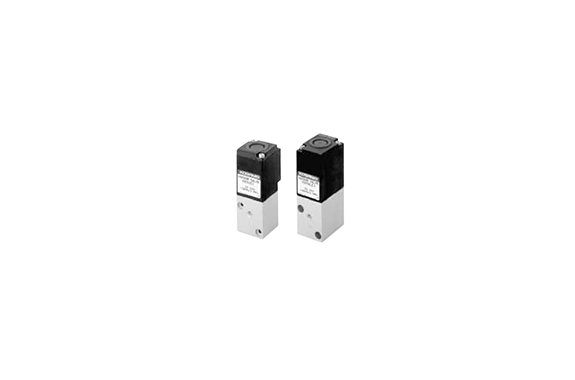

Koganei Square Type Solenoid Valves V050 Series

Manufacturer: KOGANEI CORPORATION

Features

The V030 series offers a space-saving, low-current type designed to handle multiple vacuum pads on a one-to-one basis. It provides a variety of wiring options, and surge-suppression measures are standard for both AC and DC.

Additionally, the V100 and V200 series can be used as NC (normally closed) and NO (normally open) 2- and 3-port valves, offering flexibility in piping ports and flow directions. These valves also demonstrate their true value as selector valves (dual-pressure switching valves) or divider valves.

Furthermore, the 3-port V030, V050, SV100, and SV200 series valves offer excellent reliability, even when used in positive pressure applications. This makes them ideal for vacuum break or releasing workpiece valves.

Moreover, a flywheel diode is standard equipment for AC solenoids (except for V030, optional on the DC24V model). This feature eliminates solenoid burning or humming for smooth, continuous operation.

Specifications

Item	V050E1 (Standard type)	V050LE1 (Low current type)
Media	Vacuum, air
Operation type	Direct acting type
Number of positions, Number of ports	2 positions, 2, 3 ports
Valve function	Normally closed (NC, standard) or Normally open (NO, optional)
Effective area (Cv)	mm² [in²]: 1.5 [0.08]	mm² [in²]: 1.5 [0.08]
Port size	M5 × 0.8
Lubrication	Not required
Operating pressure range	kPa [mmHg] [inHg]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53]	kPa [mmHg] [inHg]: 0 ~ 100 [0 ~ 750] [0 ~ 29.53]
Proof pressure	MPa [kgf/cm²] [psi]: 1.03 [10.15] [149]	MPa [kgf/cm²] [psi]: 1.03 [10.15] [149]
Response time	ms: DC24V: 20/20 or below	ms: DC24V: 30/30 or below
ON/OFF	AC100V, AC200V: 25/25 or below	AC100V, AC200V: 30/30 or below
Maximum operating frequency	Hz: 5
Operating temp. range (atmosphere and media)	°C [°F]: 0 ~ 50 [32 ~ 122]
Shock resistance	Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0])	Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0])
Mounting direction	Any
Mass	g [oz.]: 190 [6.70] (185 [6.53])	g [oz.]: 295 [10.41] (290 [10.23])
