Manufacturer: KOGANEI CORPORATION
Features

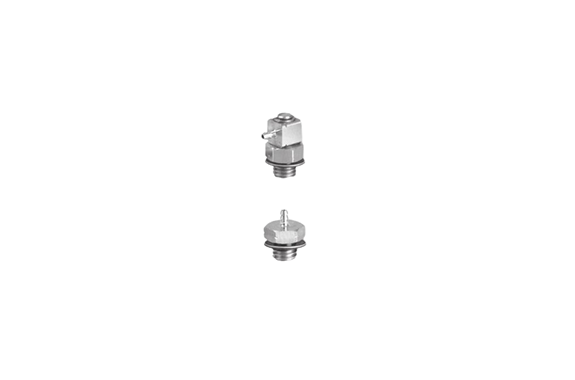

These TAC fittings are specifically designed for φ2 tubes, ensuring a secure and efficient connection. Additionally, compact fittings are available for all types of compact equipment, offering versatility and ease of installation.
Specifications
| Name and type | Straight |
|---|
| Model | BF2ZBU-M3 (-HN) | BF2ZBU (-HN) |
|---|
| Port size | M3×0.5 (male thread) | M5×0.8 (male thread) |
| Applicable tube | 2.0×1.2 | 2.0×1.2 |
| Effective area | mm²: 0.45 | mm²: 0.45 |
| Operating temperature range | °C: 0 to 60 | °C: 0 to 60 |
| Material | Stainless steel | Stainless steel |
| Weight | g: 0.7 (0.4) | g: 1.6 (1.3) |
| Remark | With 1 gasket and 1 holder | With 1 gasket and 1 holder |
| Sales unit | 1 pack (10 pcs.) | 1 pack (10 pcs.) |
| Name and type | Elbow |
|---|
| Model | UER2ZBU-M3 (-HN) | UER2ZBU (-HN) |
|---|
| Port size | M3×0.5 (male thread) | M5×0.8 (male thread) |
| Applicable tube | 2.0×1.2 | 2.0×1.2 |
| Effective area | mm²: 0.35 | mm²: 0.35 |
| Operating temperature range | °C: 0 to 60 | °C: 0 to 60 |
| Material | Stainless steel | Stainless steel |
| Weight | g: 1.7 (1.4) | g: 2.6 (2.3) |
| Remark | With 1 gasket and 1 holder | With 1 gasket and 1 holder |
| Sales unit | 1 pack (5 pcs.) | 1 pack (5 pcs.) |
| Name and type | Different diameter nipple |
|---|
| Model | NBF3-2ZBU (-HN) | NBF4-2ZBU (-HN) |
|---|
| Port size | – | – |
| Applicable tube | 2.0×1.2×3×1.5 | 2.0×1.2×4×2.5 |
| Effective area | mm²: 0.45 | mm²: 0.45 |
| Operating temperature range | °C: 0 to 60 | °C: 0 to 60 |
| Material | Stainless steel | Stainless steel |
| Weight | g: 0.5 (0.2) | g: 0.6 (0.3) |
| Remark | With 1 holder | With 1 holder |
| Sales unit | 1 pack (10 pcs.) | 1 pack (10 pcs.) |
