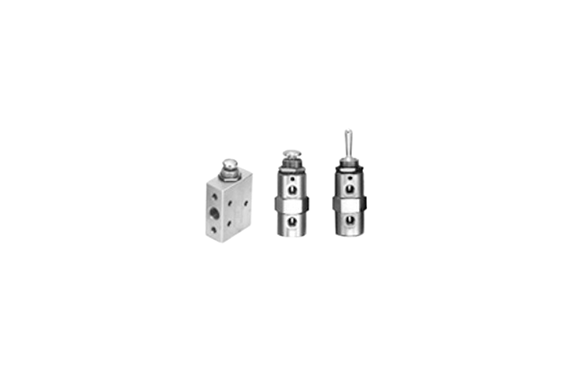

TAC, a compact device designed for total pneumatic control, stands for Tiny Air Components for Total Air Control. The TAC series provides compact valves and includes virtually all the necessary peripheral devices needed for operating small air cylinders. Moreover, it allows for the easy configuration of simple pneumatic circuits, making it an efficient and reliable solution for various applications.
Specifications
| Item | Model |
|---|---|
| Operation type | 2P – Push button, 3P – Spring return, 4P – Push button, 4PP – Push button holding type |
| Number of ports | 2 (Normally closed), 3P – 5 (Normally closed) |
| Port size | M5 X 0.8 |
| Media | Air |
| Operating pressure range | 0 ~ 0.9 MPa [0 ~ 131 psi] |
| Proof pressure | 1.35 MPa [13.8 psi] |
| Operating temperature range (atmosphere and media) | 0 ~ 60°C [32 ~ 140°F] |
| Effective area | 2P – 6.0 mm² [0.30], 3P – 15 mm² [0.76], 4P – 15 mm² [0.76], 4PP – 15 mm² [0.76] |
| Flow coefficient | 2P – Cv 0.08, 3P – Cv 0.12, 4P – Cv 0.12, 4PP – Cv 0.12 |
| Mounting direction | Any |
| Maximum operating frequency | 5 Hz |
| Valve stroke | Pre-stroke 2.4 mm [0.094], Main stroke 0.8 mm [0.031], Over stroke 0.8 mm [0.031] |
| Lubrication | Required (Turbine Oil Class 1 ISO VG32 or equivalent) |
| Mass | 2P – 35 g [1.23 oz], 3P – 30 g [1.06 oz], 4P – 66 g [2.33 oz], 4PP – 71 g [2.50 oz] |
| Standard accessories | Lock nut (110-21A), Lock washer (100-35) |
| Sales unit | 1 pc. each for 3P, 2 pcs. each for 4PP |
