KOGANEI CORPORATION

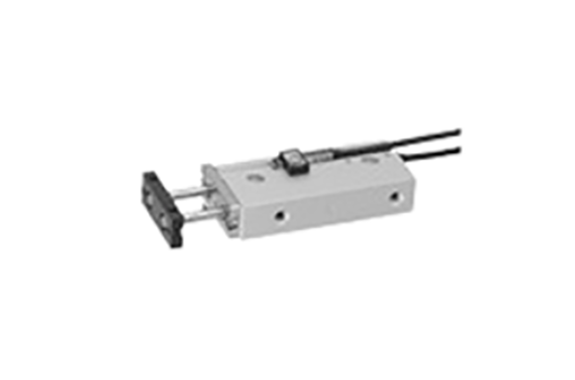

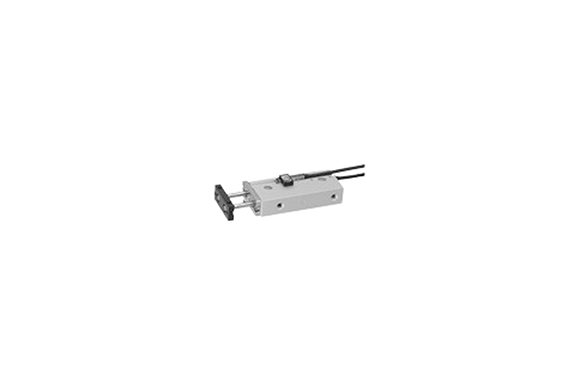

Koganei Twin Rod Cylinders φ6 Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
A square style, a compact design that needs no guides, and direct mounting makes the mechanical devices more compact!
Non-rotating accuracy is ±0.45°.
Moreover, cylinder thrust is twice that of conventional cylinders.
Specifications
| Item | Bore size mm [in.] | 6 [0.236] |
|---|---|---|
| Operation type | Double acting type | |
| Media | Air | |
| Mounting type | Side mount | |
| Operating pressure range MPa [psi.] | 0.2～0.7 [29～102] | |
| Proof pressure MPa [psi.] | 1.03 [149] | |
| Operating temperature range °C [°F] | 0～60 [32～140] | |
| Operating speed range mm/s [in./sec.] | 100～500 [3.9～19.7] | |
| Cushion | None | |
| Lubrication | Not required | |
| Non-rotating accuracy | ±0.45° | |
| Stroke adjusting range mm [in.] | −5～0 [−0.197～0] (To the specification stroke) | |
| Port size | M5 × 0.8 | |
