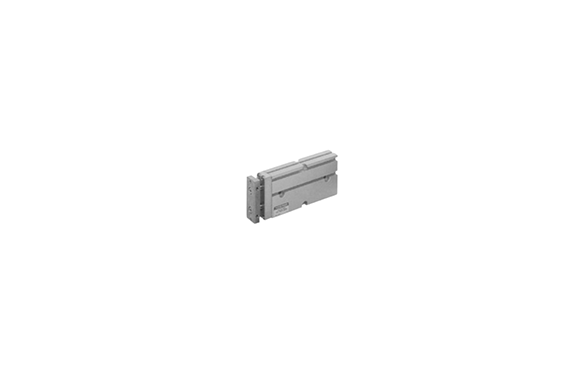

Koganei Twin Rod Cylinders B Series Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore size ranges from Φ10 to 32 mm [0.394 to 1.260 in], designed to meet cleanroom specifications. This twin rod cylinder offers exceptional performance in compact spaces. Additionally, the original rotation-less design integrates two cylinders into a single, efficient configuration. As a result, it provides enhanced versatility and space savings, making it an ideal choice for various cleanroom applications.
Specifications
| Item | Bore size mm [in.] | |||||
|---|---|---|---|---|---|---|
| 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | ||
| Operating type | Side mount | |||||
| Media | Air | |||||
| Operating pressure range | 0.15～0.7 MPa [22～102 psi] | 0.15～0.7 MPa [22～102 psi] | 0.1～0.7 MPa [15～102 psi] | 0.1～0.7 MPa [15～102 psi] | 0.1～0.7 MPa [15～102 psi] | |
| Proof pressure | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | |
| Operating temperature range | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] | |
| Operating speed range | 100～300 mm/s [3.9～11.8 in./sec] | 100～300 mm/s [3.9～11.8 in./sec] | 100～300 mm/s [3.9～11.8 in./sec] | 100～300 mm/s [3.9～11.8 in./sec] | 100～300 mm/s [3.9～11.8 in./sec] | |
| Cushion | Rubber bumper | |||||
| Lubrication | Not required | |||||
| Non-rotating accuracy | ±0.3° | |||||
| Port size | M5×0.8 | M5×0.8 | M5×0.8 | M5×0.8 | Rc1/8 | |
| Dust collection port | M5×0.8 | |||||
