KOGANEI CORPORATION

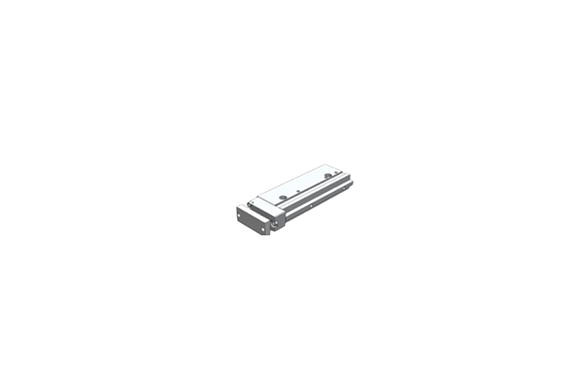

Koganei Twin Rod Cylinders Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore measures Φ6 mm [0.236 in], specifically designed to meet cleanroom specifications. This twin rod cylinder offers high performance and efficiency, making it ideal for applications that demand both reliability and precision. As a result, it provides an optimal solution for clean environments where space and performance are crucial.
Specifications
| Item | Bore size mm [in.] | |
|---|---|---|
| 6 [0.236] | ||
| Media | Air | |
| Mounting type | Side mount | |
| Operating pressure range | 0.3～0.7 MPa [44～102 psi] | |
| Proof pressure | 1.03 MPa [149 psi] | |
| Operating temperature range | 0～60°C [32～140°F] | |
| Operating speed range | 100～300 mm/s [3.9～11.8 in./sec] | |
| Cushion | None | |
| Lubrication | Not required | |
| Non-rotating accuracy | ±0.45° | |
| Port size | Supply and exhaust port: M5×0.8 | |
| Dust collection port | M5×0.8 | |
