KOGANEI CORPORATION

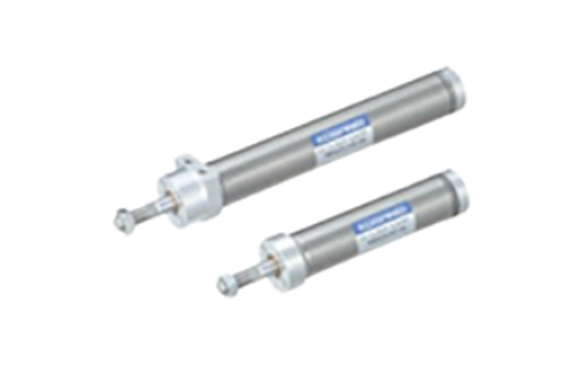

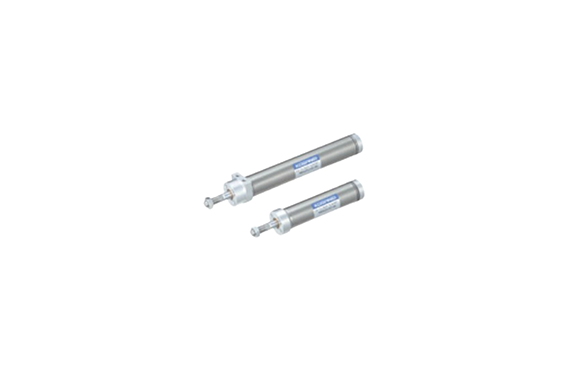

Koganei Twinport Cylinders Head Side Piping, Rod Side Piping
Manufacturer: KOGANEI CORPORATION
Features
Two connection ports are positioned on one side to eliminate dead space from the area around the cylinder.
Air cylinder works with compact, highly rigid mounts to achieve space-saving and smaller pitch mountings.
Positioning connection ports on the single plane on the rod side or the head side cuts piping space in half and also eliminates the need to take special considerations for adjusting space for the speed controller.
Compact, highly rigid mounting design achieves smaller pitch and highly accurate mountings for twinport cylinders, and also lets the connection ports be freely selected at 90° intervals.
The twinport cylinders are developed for space-saving, flexible design suited to the design, assembly, and maintenance of mechanical devices.
Specifications
| Item | Bore size mm [in.] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] |
|---|---|---|---|---|---|---|
| Operation type | Double acting type | |||||
| Media | Air | |||||
| Mounting type | Basic type, Single foot type, Double foot type, Flange type, Side mount | |||||
| Operating pressure range MPa [psi.] | 0.1～0.7 [15～102] | |||||
| Proof pressure MPa [psi.] | 1.03 [149] | |||||
| Operating temperature range °C [°F] | 0～60 [32～140] | |||||
| Operating speed range mm/s [in./sec.] | 50～500 [2.0～19.7] | |||||
| Cushion | Fixed type (Rubber bumper) | |||||
| Lubrication | Not required | |||||
| Port size | M5 × 0.8 | Rc1/8 | ||||
