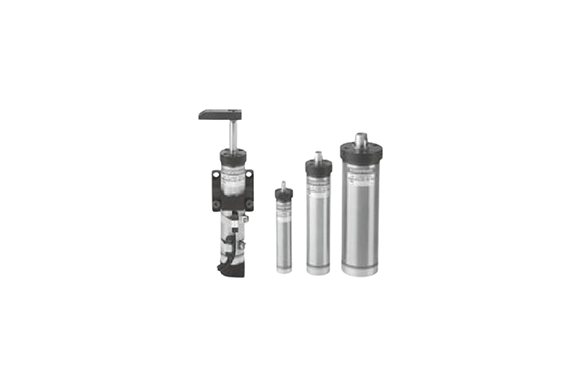

Koganei Twist Cylinders
Manufacturer: KOGANEI CORPORATION
Features
● Slim Body and Concentrated Piping for Space Efficiency
Two piping ports on the cylinder head concentrate the piping to save space around the cylinder.
● Various Mounting Types Back Up Design Flexibility
Mounting methods include a nose mount directly secured on the rod cover, and a foot mount using an optional body mounting bracket.
Specifications
| Item | Type — Medium load type (RHDA) Bore size mm [in.] | ||
|---|---|---|---|
| 16 [0.630] | 25 [0.984] | 40 [1.575] | |
| Operation type | Double acting type | ||
| Swing angle | About 90° | ||
| Swing stroke mm [in.] | 10 [0.394] | 15 [0.591] | 20 [0.787] |
| Direction of swing | Left or Right | ||
| Total stroke mm [in.] | 20, 30 [0.787, 1.181] | 30, 50 [1.181, 1.969] | |
| Allowable moment N·m [ft·lbf] | 5.3 [3.9] | 14.8 [10.9] | 52.5 [38.7] |
| Theoretical clamping force N [lbf] | 84.3 [19.0] | 202 [45.4] | 516.8 [116.2] |
| Media | Air | ||
| Port size | M5 × 0.8 | Rc1/8 | |
| Mounting type | Basic type and body mounting type | ||
| Operating pressure range MPa [psi] | 0.2～0.7 [29～102] | ||
| Proof pressure MPa [psi] | 1.03 [149] | ||
| Operating temperature range °C [°F] | 0～60 [32～140] | ||
| Lubrication | Not required | ||
| Cushion | Fixed type (Rubber bumper) | ||
