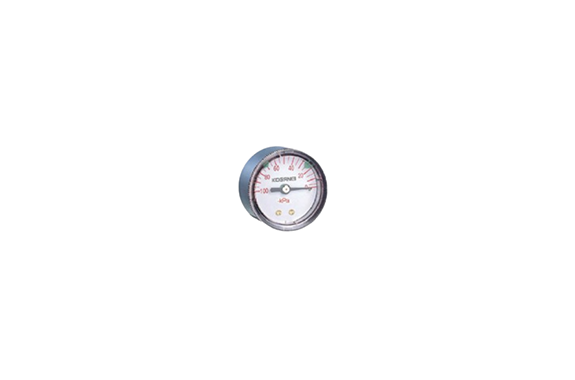

This vacuum pressure gauge features a compact outside diameter of 40 mm (1.575 in), making it ideal for space-limited designs. In addition, the panel mount option allows easy integration into devices. As a result, installation becomes more convenient and system layout remains clean and efficient
KOGANEI CORPORATION
Koganei Vacuum Gauges
Manufacturer: KOGANEI CORPORATION
Features
Specifications
| Item | GV-40-01 | GV-40, GPV-40 |
|---|---|---|
| Media | Air | |
| Pressure indication range kPa [in.Hg] | 0 ~ −100 [0 ~ −29.54] | |
| Accuracy | F.S. ±3% | |
| Operating temperature range °C [°F] | 5 ~ 60 [41 ~ 140] | |
| Port size | R1/8 (female thread M5×0.8) | R1/4 (female thread M5×0.8) |
| Mass kg [lb.] | 0.08 [0.18] | 0.09 [0.20] |
