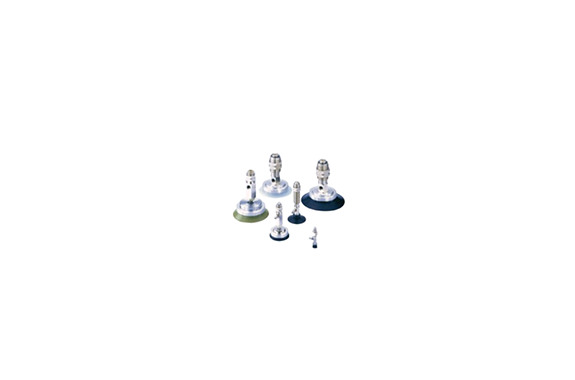

This solution is ideal for small, lightweight transport systems that require precise and stable handling. Moreover, it delivers outstanding reliability, which helps eliminate suction errors during operation. In addition, conductive vacuum pads are available to support sensitive applications. Furthermore, halogen process vacuum pads can also be selected, providing greater flexibility for different production needs.
Specifications
| Item | Horizontal piping, fixed (KPHF) | Horizontal piping, with built-in spring (KPHS) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pad diameter options | Pad diameter options | |||||||||||||
| Pad diameter (mm) | 2.5, 3.5 / 2×4, 6, 8 / 3.5×7 / 10, 15, 20 / 25, 30, 35 / 40, 50 / 60, 80 / 95, 100 / 120, 150, 200 | 2.5, 3.5 / 2×4, 6, 8 / 3.5×7 / 10, 15, 20 / 25, 30, 35 / 40, 50 / 60, 80 / 95, 100 / 120, 150, 200 | ||||||||||||
| Applicable tube size or port thread | 4×2.5 | 6×4 | Rc1/8 | 4×2.5 | 6×4 | Rc1/8 | ||||||||
| Spring stroke (mm [in.]) | — | 3 [0.12], 5 [0.20], 7 [0.28], 10 [0.39], 20 [0.79] | ||||||||||||
| Spring return force (½ stroke) N [lbf] | — | 1.8 [0.40], 2.6 [0.58], 1.0 [0.22], 3.5 [0.79], 9.8 [2.20], 10.8 [2.43] | ||||||||||||
| Materials | Body: Brass (nickel plated) | Body: Brass / Steel (nickel plated) | ||||||||||||
| Case body: — | Case body: Aluminum alloy (anodized) | |||||||||||||
| Cover: — | Cover: — | |||||||||||||
| O-ring: Synthetic rubber (NBR) | O-ring: Synthetic rubber (NBR) | |||||||||||||
| Guide: — | Guide: Brass / Steel (nickel plated) | |||||||||||||
| Spring: — | Spring: Stainless steel / Piano wire (zinc plated) | |||||||||||||
| Rubber pad (color) | Synthetic rubber: NBR (black), urethane (green), silicone (white), fluorine (black with white mark) | |||||||||||||
| Item | Vertical piping, fixed (KPVF) | Vertical piping, with built-in spring (KPVS) | ||||||||||||
| Pad diameter (mm) | 2.5, 3.5 / 2×4, 3.5×7 / 6, 8 / 10, 15, 20 / 25, 30, 35 / 40, 50 | 2.5, 3.5 / 2×4, 3.5×7 / 6, 8 / 10, 15, 20 / 25, 30, 35 / 40, 50 | ||||||||||||
| Applicable tube size | 4×2.5 / 6×4 | 4×2.5 / 6×4 | ||||||||||||
| Spring stroke (mm [in.]) | — | 3 [0.12], 5 [0.20], 9 [0.35] | ||||||||||||
| Spring return force (½ stroke) N [lbf] | — | 2.5 [0.56], 2.4 [0.54], 1.0 [0.22], 4.9 [1.10] | ||||||||||||
| Materials | Body: Brass (nickel plated) Rubber pad: Synthetic rubber (NBR black), urethane (green), silicone (white), fluorine (black with white mark) | |||||||||||||
