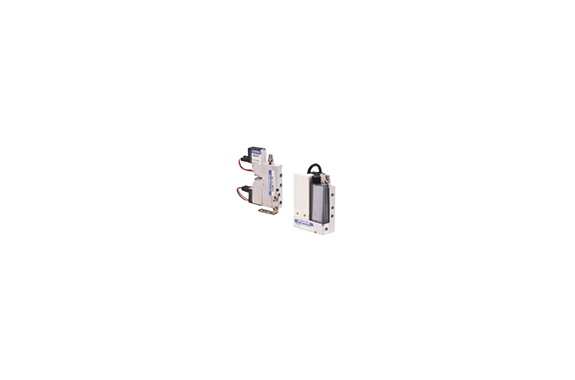

“The MV180 Series offers a large flow rate type with an effective area of 4 mm² (Cv = 0.22). Additionally, the MV030 and MV090 Series provide a compact type with effective areas of 0.55 mm² (Cv = 0.0306) and 2 mm² (Cv = 0.11), respectively. Moreover, the wide range of applications available in this lineup allows for easy selection, ensuring compatibility with the transfer workpiece on factory production lines.”
Specifications
| Item | MV030 | MV090 |
|---|---|---|
| Media | Vacuum | Air |
| Operating pressure range | kPa [psi]: −100 ~ 0 kPa [−29.54 ~ 0 in.Hg], 0 ~ 0.7 MPa [0 ~ 102 psi] | kPa [psi]: −100 ~ 0 kPa [−29.54 ~ 0 in.Hg], 0.3 ~ 0.7 MPa [44 ~ 102 psi] |
| Proof pressure | MPa [psi]: 1.05 [152] | MPa [psi]: 1.05 [152] |
| Operating temperature range | °C [°F]: 5 ~ 50 [41 ~ 122] | °C [°F]: 5 ~ 50 [41 ~ 122] |
| Vacuum flow rate | ℓ/min [ft³/min] (ANR): 5 [0.18] | ℓ/min [ft³/min] (ANR): 20 [0.71] |
| Effective area (Positive pressure/vacuum) | mm² [in²]: 0.2/0.5 [0.011/0.031] | mm² [in²]: 0.2/2 [0.011/0.11] |
| Lubrication | Prohibited | Prohibited |
| Filtration | μm: 30 | μm: 30 |
| Mounting direction | Any | |
| Operation type | Direct acting | Indirect acting |
| Number of vacuum supply ports | 2 or 3 ports | 2 or 3 ports |
| Valve function | Normally closed (NC)/Normally open (NO) | Normally closed (NC)/Normally open (NO) |
| Shock resistance | m/s² [G]: 1373 [140] (axial direction 196 [20]) | m/s² [G]: 1373 [140] (axial direction 196 [20]) |
| Mounting valve | GAV010HE1 | GA010E1 |
