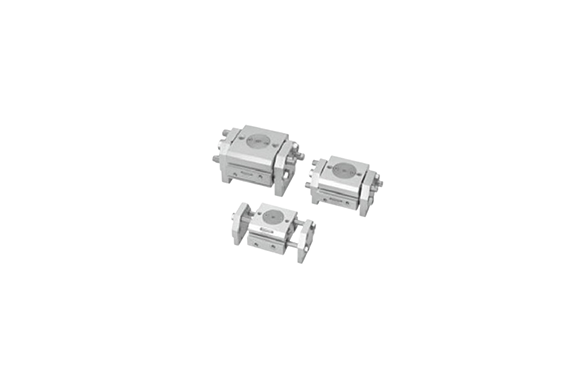

Koganei WHDP Series Double Acting Rack Operation Parallel Type
Manufacturer: KOGANEI CORPORATION
Features
To begin with, this series offers four lever options with open and close travel strokes of 24, 32, 40, and 50 millimeters, making it adaptable to a wide range of gripping requirements. Additionally, a magnet for a sensor switch is included as standard equipment, ensuring straightforward integration with automated detection and control systems.
Specifications
| Item | Basic model | |||
|---|---|---|---|---|
| WHDP-12 | WHDP-16 | WHDP-20 | WHDP-25 | |
| Cylinder bore size mm [in.] | 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] |
| Operation type | Double acting type | |||
| Media | Air | |||
| Operating pressure range MPa [psi] | 0.2–0.7 [29–102] | 0.2–0.7 [29–102] | 0.2–0.7 [29–102] | 0.2–0.7 [29–102] |
| Proof pressure MPa [psi] | 1.05 [152] | |||
| Operating temperature range °C [°F] | 0–60 [32–140] | |||
| Maximum operating frequency cycle/min | 120 | |||
| Lubrication | Not required | |||
| Effective gripping force (F)¹ N [lbf] | 24 [5.4] | 48 [10.8] | 82 [18.4] | 132 [29.7] |
| Lever open/closed stroke mm [in.] | 24 [0.945] | 32 [1.260] | 40 [1.575] | 50 [1.969] |
| Repeatability mm [in.] | ±0.08 [±0.0031] | |||
| Port size | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 | M5 × 0.8 |
| Mass g [oz.] | 230 [8.1] | 400 [14.1] | 760 [26.8] | 1100 [38.8] |
