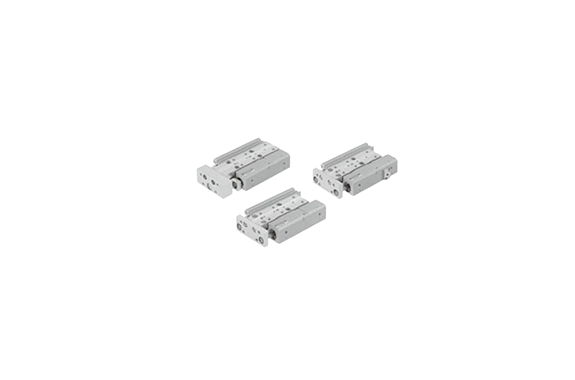

Koganei Z Sliders Cylinders With End Keeps
Manufacturer: KOGANEI CORPORATION
Features
Prevent workpiece from falling down when air supply is cut off or air pressure has reduced.
Available in compact at the same size as the standard type.
Specifications
| Item | Model | ZSK16 | ZSK20 | ZSK25 |
|---|---|---|---|---|
| Bore size mm [in.] | 16 [0.630] | 20 [0.787] | 25 [0.984] | |
| Operating pressure range MPa [psi.] | 0.2～0.7 [29～107] | |||
| Maximum holding force at end keep N [lbf.] | 96 [21.6] | 151 [33.9] | 235 [52.8] | |
| Backlash at end keep mm [in.] | 1 [0.039] MAX. | |||
