KOGANEI CORPORATION

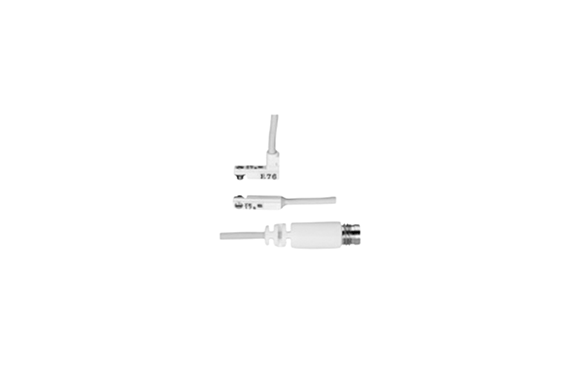

Koganei ZE175, 275 3-Lead Wire PNP Output Type Solid State Type Sensor Switches
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | ZE175 | ZE275 |
|---|---|---|---|
| Wiring type | 3-lead wire PNP output | ||
| Lead wire direction | Horizontal | Vertical | |
| Power supply voltage | DC4.5~28V | ||
| Load voltage | DC4.5~28V | ||
| Load current | 50mA MAX. | ||
| Consumption current | 10mA MAX. (DC24V) | ||
| Internal voltage dropNote 1 | 0.5V MAX. (10V or less at 20mA) | ||
| Leakage current | 50µA MAX. (DC24V) | ||
| Response time | 1ms MAX. | ||
| Insulation resistance | 100MΩ MIN. (At DC500V Megger, between case and lead wire end) | ||
| Dielectric strength | AC500V (50/60Hz) in 1 minute (Between case and lead wire end) | ||
| Shock resistanceNote 2 | 294.2m/s² [30G] (Non-repeated shock) | ||
| Vibration resistanceNote 2 | 88.3m/s² [9G] (Total amplitude 1.5mm [0.06in.], 10~55Hz) | ||
| Environmental protection | IP67 (IEC standard), JIS C0920 (Water-proof type) | ||
| Operation indicator | When ON: Red LED indicator lights up | ||
| Lead wireNote 3 | ZE175 | PVC 0.15SQ X3-lead (Brown, blue, and black) X ℓ | |
| Ambient temperature | 0~60°C [32~140°F] | ||
| Storage temperature range | -10~70°C [14~158°F] | ||
| Mass | ZE175 | 15g [0.53oz.] (For lead wire length A: 1000mm), 35g [1.23oz.] (For lead wire length B: 3000mm) | |
