Japan, KONAN ELECTRIC, Solenoid Valves
KONAN 416 Series 5 Port Solenoid Valve Spool Valve Gasket-connected Type
Manufacturer: KONAN ELECTRIC
Model: 416 Series
Product: 5 Port Solenoid Valve Spool Valve Gasket-connected Type
Specification
| Type symbol | 414 type
416 type | Return | ４１□ S ２０１□ | ４１□ S ２０２□ | ４１□ S ３０２□ | ４１□ S ３０３□ | ４１□ S ６０３□ | ４１□ S ６０４□ | ４１４ S A １４C | ４１４ S A １６C | ４１４ S A ９６C | ４１４ S A ９１C |
| Hold | ４１□Ｄ２０１Ｃ | ４１□Ｄ２０２Ｃ | ４１□Ｄ３０２Ｃ | ４１□Ｄ３０３Ｃ | ４１□Ｄ６０３Ｃ | ４１□Ｄ６０４Ｃ | ４１４ D A １４C | ４１４ D A １６C | ４１４ D A ９６C | ４１４ D A ９１C | ||
| Closed center | ４１□ H ２０１Ｃ | ４１□ H ２０２Ｃ | ４１□ H ３０２Ｃ | ４１□ H ３０３Ｃ | ４１□ H ６０３Ｃ | ４１□ H ６０４Ｃ | ４１４ H A １４C | ４１４ H A １６C | ４１４ H A ９６C | ４１４ H A ９１C | ||
| Center open to exhaust | ４１□ J ２０１Ｃ | ４１□ J ２０２Ｃ | ４１□ J ３０２Ｃ | ４１□ J ３０３Ｃ | ４１□ J ６０３Ｃ | ４１□ J ６０４Ｃ | ４１４J A １４C | ４１４ J A １６C | ４１４ J A ９６C | ４１４J A ９１C | ||
| Center open to pressure | ４１□I ２０１Ｃ | ４１□I ２０２Ｃ | ４１□ I 3 ０２Ｃ | ４１□ I 3 ０３Ｃ | ４１□I ６０３Ｃ | ４１□I ６０４Ｃ | ４１４I A １４C | ４１４ I A １６C | ４１４ I A ９６C | ４１４ I A ９1C | ||
| Body type | Ｂ 20 | Ｂ 30 | Ｂ 60 | Ｂ 110 | Ｂ 190 | |||||||
| Port size | Ｒｃ１/ ８ | Ｒｃ１/ ４ | Ｒｃ３/ ８ | Ｒｃ１/ ２ | Ｒｃ３/ ４ | Ｒｃ１ | ||||||
| Effective sectional area | 414 type | 16㎜2 | 20㎜2 | 25㎜2 | 30㎜2 | 51㎜2 | 60㎜2 | 94㎜2 | 110㎜2 | 160㎜2 | 190㎜2 | |
| 416 S.D | 16㎜2 | 17㎜2 | 20㎜2 | 25㎜2 | 43㎜2 | 51㎜2 | ||||||
| 416 H.J.I | 13㎜2 | 14㎜2 | 16㎜2 | 18㎜2 | 40㎜2 | 45㎜2 | ||||||
| Operating pressure | 414 type | ０．２〜１．０MP ａ | ||||||||||
| 416 type | ０．1 ２〜１．０MP ａ | |||||||||||
| Proof pressure | １．５MP ａ | |||||||||||
| Operating temperature | 414 type | ー５〜５０℃ | Remove moisture perfectly from the fluid to prevent freezing when used at 5℃ or lower. | |||||||||
| 416 type | — 20 〜 6 ０℃ | |||||||||||
| Solenoid | Allowable voltage fluctuation | ± :10% of applicable voltage | ||||||||||
| Temperature rise | Max. 60℃ | |||||||||||
| Insulation class | Class B | |||||||||||
| Power consumption | AC：２W / DC：３W | |||||||||||
| ※ Response time | 414 type | ０. ０３s（０. ０６s） | ０. ０５s（０. １s） | ０. ０８s（０. １２s） | ０. ０５s | ０. ０８s | ||||||
| 416 type | ０. ０５s（０. ０８s） | ０. ０８s | ０. １４s | |||||||||
| Performance frequency | 414 type | Max. 4 cycle/s ; Min. 1 cycle/mon. | ||||||||||
| 416 type | Max. 4 cycle/s ; Min. 1 cycle/3 mon. | |||||||||||
| Mass | ０. ６kg | １. ３kg | ２. ２kg | ４. ０kg | ６. ０kg | |||||||
| Applicable cylinder size (for reference) | φ６３〜１２５ | φ１００〜１６０ | φ１４０〜２００ | φ１６０〜２５０ | φ２００〜５００ | |||||||
Model Code

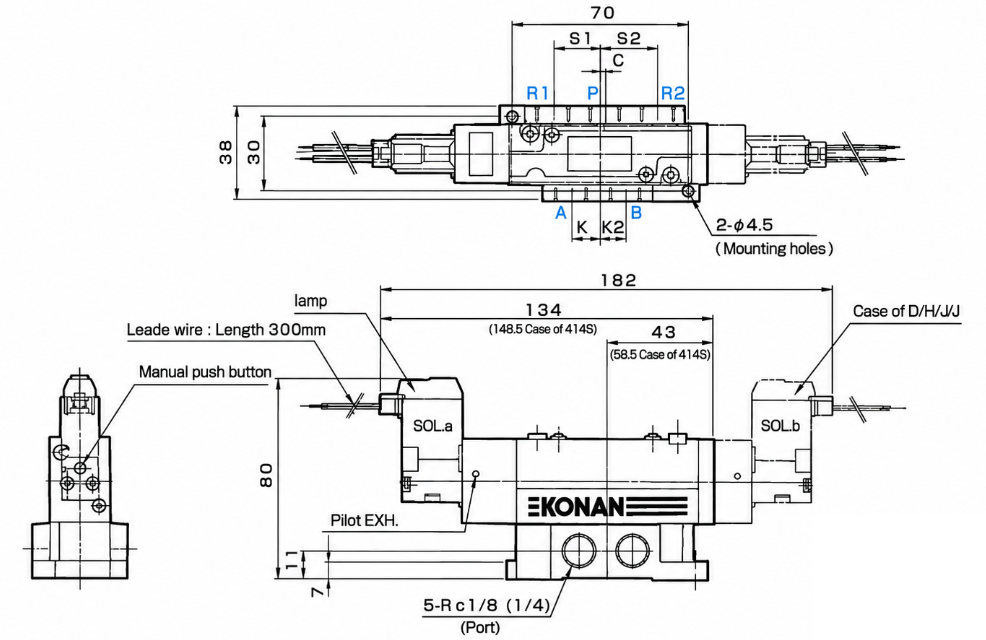

Outside dimensions
41 □□ 20 □Ｃ /E −Ｍ（Lead wire）
41 □□ 30 □Ｃ /E −Ｍ（Lead wire）
41 □□ 60 □Ｃ /E −Ｍ（Lead wire）
41 □□ 30 □Ｃ /E ーBA（DIN connecter）
41 □□ 60 □Ｃ /E ーBA（DIN connecter）
Outside dimensions〈Mount wiring type〉
41 □□ 20 □Ｃ /E − F（Lead wire）
41 □□ 30 □ C/E − F/ZA（Lead wire/K terminal blocks）
41 □□ 60 □ C/E − F/ZA（Lead wire/K terminal blocks）
414 □ A1 □ C − F/ZA（Lead wire/K terminal blocks）
414 □ A9 □ C − F/ZA（Lead wire/K terminal blocks）
