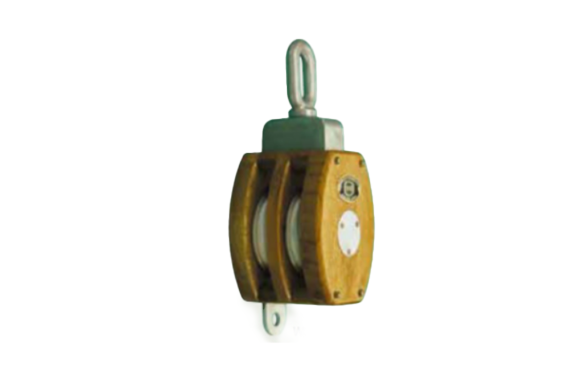

Kondotec Ship’s Internal-Bound Blocks

Products Made In Japan
Manufacturer: Kondotec
Model: W1AH / W1AL / W1AS / W1BH / W1BS / W2AH / W2AL / W2AS / W2BH / W2BS / W3AL / W3AS / W3BS / W1AS140A / W1BS140A / W2AS140A / W2BS140A / W1AS180A / W1BS180A / W2AS180A / W2BS180A / W1AS200A / W1BS200A / W2AS200A / W2BS200A / W3AS200A / W3BS200A / W1AS220A / W1BS220A / W2AS220A / W2BS220A / W3AS220A / W3BS220A / W1AS240A / W1BS240A / W2AS240A / W2BS240A / W3AS240A / W3BS240A / W1AS280A / W3AS280A / W3BS280A / W1AS300A / W3AS300A / W3BS300A

Specifications

Type	Nominal Size (Height of Shell)
W1AH	140	180	200	220	240	_	_
W1AL	_	180	200	220	240	280	300
W1AS	140	180	200	220	240	280	300
W1BH	140	180	200	220	240	_	_
W1BS	140	180	200	220	240	_	_
W2AH	140	180	200	220	240	_	_
W2AL	_	180	200	220	240	_	_
W2AS	140	180	200	220	240	_	_
W2BH	140	180	200	220	240	_	_
W2BS	140	180	200	220	240	_	_
W3AL	_	_	200	220	240	280	300
W3AS	_	_	200	220	240	280	300
W3BS	_	_	200	220	240	280	300

Code No.	Type	Nominal Size (Shell)	Sheave Dia (mm)	Dia of Wire Rope Applied (mm)	W.L.L KN (tf)	Shackles		Weight (kg/pce)
Code No.	Type	Nominal Size (Shell)	Sheave Dia (mm)	Dia of Wire Rope Applied (mm)	W.L.L KN (tf)	Upper	Bottom	Weight (kg/pce)
W1AS140A	W1BS	140	90	14	1.77 (0.18)	SC10 or SD12	_	2
W1BS140A	W1AS	180	120	18	1.67 (0.17)	SC10 or SD12	BD 8	2.3
W2AS140A	W2AS	200	130	20	6.47 (0.66)	SC12 or SD14	_	3.5
W2BS140A	W2BS	220	140	22	7.75 (0.79)	SC12 or SD16	BD 8	3.8
W1AS180A	W1AS	240	160	24	2.84 (0.29)	SC10 or SD12	_	3.5
W1BS180A	W1BS	280	180	28	2.65 (0.27)	SC12 or SD16	BD10	4.1
W2AS180A	W2AS	300	200	30	10.79 (1.10)	SC14 or SD20	_	6
W2BS180A	W2BS	_	_	_	12.75 (1.30)	SC16 or SD20	BD10	6.7
W1AS200A	W1AS	_	_	_	3.43 (0.35)	SC12 or SD14	_	4.3
W1BS200A	W1BS	_	_	_	3.24 (0.33)	SC14 or SD16	BD12	5.2
W2AS200A	W2AS	_	_	_	12.75 (1.30)	SC16 or SD20	_	8
W2BS200A	W2BS	_	_	_	15.69 (1.60)	SC18 or SD22	BD12	9
W3AS200A	W3AS	_	_	_	17.65 (1.80)	SC18 or SD22	_	11.2
W3BS200A	W3BS	_	_	_	19.61 (2.00)	SC18 or SD22	BD14	12.2
W1AS220A	W1AS	_	_	_	4.12 (0.42)	SC12 or SD16	_	6.2
W1BS220A	W1BS	_	_	_	3.92 (0.40)	SC14 or SD20	BD14	7.5
W2AS220A	W2AS	_	_	_	15.69 (1.60)	SC18 or SD22	_	10
W2BS220A	W2BS	_	_	_	18.63 (1.90)	SC18 or SD22	BD14	11.1
W3AS220A	W3AS	_	_	_	20.59 (2.10)	SB20 or SD22	_	15
W3BS220A	W3BS	_	_	_	23.54 (2.40)	SB20 or SD24	BD14	15.8
W1AS240A	W1AS	_	_	_	4.90 (0.50)	SC14 or SD20	_	8.2
W1BS240A	W1BS	_	_	_	4.61 (0.47)	SC18 or SD22	BD16	10.1
W2AS240A	W2AS	_	_	_	17.65 (1.80)	SC18 or SD22	_	13.9
W2BS240A	W2BS	_	_	_	21.58 (2.20)	SC20 or SD24	BD16	15.6
W3AS240A	W3AS	_	_	_	24.52 (2.50)	SB22 or SD26	_	19.8
W3BS240A	W3BS	_	_	_	27.46 (2.80)	SB22 or SD26	BD16	20.8
W1AS280A	W1AS	_	_	_	6.47 (0.66)	SC16 or SD20	_	11.5
W3AS280A	W3AS	_	_	_	32.36 (3.30)	SB24 or SD28	_	29
W3BS280A	W3BS	_	_	_	36.28 (3.70)	SB26 or SD30	BD16	31
W1AS300A	W1AS	_	_	_	7.36 (0.75)	SC18 or SD22	_	13.3
W3AS300A	W3AS	_	_	_	37.26 (3.80)	SB26 or SD30	_	35.1
W3BS300A	W3BS	_	_	_	41.19 (4.20)	SB26 or SD34	BD18	36.2

Kouei is Distributor/Agent of Kondotec.
