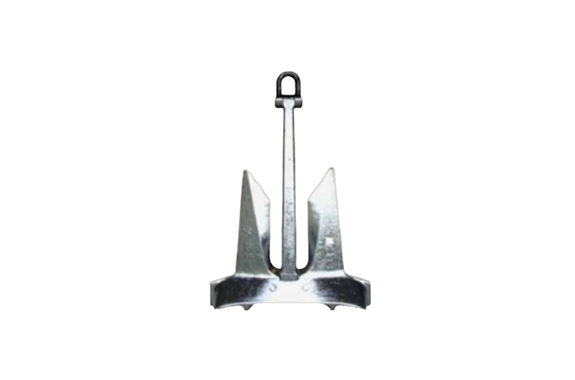

Kondotec Stockless Anchor B Type

Products Made In Japan
Manufacturer: Kondotec
Specifications
Equipment Sign | Equipment Number | Anchor | Anchor chains for large anchors (with studs) | Anchor Chains or Wire Ropes for Medium Anchor | Tow Ropes | Mooring Lines | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Numbers | Weight (for Stockless Anchor) | ||||||||||||||||
Length (m) | Diameter (mm) | ||||||||||||||||
Large | Middle | Large (kg) | Middle (kg) | Grade 1 | Grade 2 | Grade 3 | Length (m) | Breaking Load (kgf) | Length (m) | Breaking Load (kgf) | Number | Length (m) | Breaking Load (kgf) | ||||
A1 | 50> | 70 | 2 | 1 | 180 | 60 | 220 | 14 | 12.5 | 80 | 6,600 | 180 | 10,000 | 2 | 100 | 6,600 | |
A2 | 70 | 90 | 2 | 1 | 240 | 80 | 220 | 16 | 14 | 85 | 7,500 | 180 | 10,000 | 2 | 100 | 6,600 | |
A3 | 90 | 110 | 2 | 1 | 300 | 100 | 247.5 | 17.5 | 16 | 85 | 8,300 | 180 | 10,000 | 2 | 110 | 6,800 | |
A4 | 110 | 130 | 2 | 1 | 360 | 120 | 247.5 | 19 | 17.5 | 90 | 9,100 | 180 | 10,000 | 2 | 110 | 7,000 | |
A5 | 130 | 150 | 2 | 1 | 420 | 140 | 275 | 20.5 | 17.5 | 90 | 10,000 | 180 | 10,000 | 2 | 120 | 7,300 | |
B1 | 150 | 175 | 2 | 1 | 480 | 165 | 275 | 22 | 19 | 90 | 11,000 | 180 | 10,000 | 2 | 120 | 7,600 | |
B2 | 175 | 205 | 2 | 1 | 570 | 190 | 302.5 | 24 | 20.5 | 90 | 12,000 | 180 | 11,400 | 2 | 120 | 8,000 | |
B3 | 205 | 240 | 3 | 660 | 302.5 | 26 | 22 | 180 | 13,200 | 3 | 120 | 8,400 | |||||
B4 | 240 | 280 | 3 | 780 | 330 | 28 | 24 | 180 | 15,300 | 3 | 120 | 8,800 | |||||
B5 | 280 | 320 | 3 | 900 | 357.5 | 30 | 26 | 180 | 17,700 | 3 | 140 | 9,200 | |||||
C1 | 320 | 360 | 3 | 1,020 | 357.5 | 32 | 28 | 180 | 21,100 | 3 | 140 | 9,600 | |||||
C2 | 360 | 400 | 3 | 1,140 | 385 | 30 | 180 | 22,800 | 3 | 140 | 10,000 | ||||||
C3 | 400 | 450 | 3 | 1,290 | 385 | 32 | 180 | 25,500 | 3 | 140 | 10,500 | ||||||
C4 | 450 | 500 | 3 | 1,440 | 412.5 | 34 | 180 | 28,200 | 3 | 140 | 11,000 | ||||||
C5 | 500 | 550 | 3 | 1,590 | 412.5 | 34 | 190 | 31,200 | 4 | 160 | 11,500 | ||||||
D1 | 550 | 600 | 3 | 1,740 | 440 | 36 | 190 | 34,500 | 4 | 160 | 12,000 | ||||||
D2 | 600 | 660 | 3 | 1,920 | 440 | 38 | 190 | 37,800 | 4 | 160 | 12,500 | ||||||
D3 | 660 | 720 | 3 | 2,100 | 440 | 40 | 190 | 41,400 | 4 | 160 | 13,000 | ||||||
D4 | 720 | 780 | 3 | 2,280 | 467.5 | 42 | 190 | 45,000 | 4 | 170 | 13,500 | ||||||
D5 | 780 | 840 | 3 | 2,460 | 467.5 | 44 | 190 | 48,900 | 4 | 170 | 14,000 | ||||||
E1 | 840 | 910 | 3 | 2,640 | 467.5 | 46 | 40 | 190 | 52,800 | 4 | 170 | 14,500 | |||||
E2 | 910 | 980 | 3 | 2,850 | 495 | 48 | 42 | 190 | 57,000 | 4 | 170 | 15,000 | |||||
E3 | 980 | 1060 | 3 | 3,060 | 495 | 50 | 44 | 200 | 61,500 | 4 | 180 | 16,000 | |||||
E4 | 1060 | 1140 | 3 | 3,300 | 495 | 50 | 46 | 200 | 66,000 | 4 | 180 | 17,000 | |||||
E5 | 1140 | 1220 | 3 | 3,540 | 522.5 | 52 | 46 | 200 | 70,500 | 4 | 180 | 18,000 | |||||
F1 | 1220 | 1300 | 3 | 3,780 | 522.5 | 54 | 48 | 200 | 75,300 | 4 | 180 | 19,000 | |||||
F2 | 1300 | 1390 | 3 | 4,050 | 522.5 | 56 | 50 | 200 | 80,100 | 4 | 180 | 20,000 | |||||
F3 | 1390 | 1480 | 3 | 4,320 | 550 | 58 | 50 | 200 | 85,200 | 4 | 180 | 21,000 | |||||
F4 | 1480 | 1570 | 3 | 4,590 | 550 | 60 | 52 | 220 | 90,600 | 5 | 190 | 22,000 | |||||
F5 | 1570 | 1670 | 3 | 4,890 | 550 | 62 | 54 | 220 | 96,000 | 5 | 190 | 23,000 | |||||
G1 | 1670 | 1790 | 3 | 5,250 | 577.5 | 64 | 56 | 220 | 104,400 | 5 | 190 | 24,000 | |||||
G2 | 1790 | 1930 | 3 | 5,610 | 577.5 | 66 | 58 | 220 | 113,100 | 5 | 190 | 25,000 | |||||
G3 | 1930 | 2080 | 3 | 6,000 | 577.5 | 68 | 60 | 220 | 119,100 | 5 | 190 | 26,000 | |||||
G4 | 2080 | 2230 | 3 | 6,450 | 605 | 70 | 62 | 240 | 128,400 | 5 | 200 | 27,000 | |||||
G5 | 2230 | 2380 | 3 | 6,900 | 605 | 73 | 64 | 240 | 138,300 | 5 | 200 | 28,000 | |||||
H1 | 2380 | 2530 | 3 | 7,350 | 605 | 76 | 66 | 240 | 148,200 | 5 | 200 | 29,000 | |||||
H2 | 2530 | 2700 | 3 | 7,800 | 632.5 | 78 | 68 | 260 | 150,000 | 6 | 200 | 30,000 | |||||
H3 | 2700 | 2870 | 3 | 8,300 | 632.5 | 81 | 70 | 260 | 150,000 | 6 | 200 | 31,000 | |||||
H4 | 2870 | 3040 | 3 | 8,700 | 632.5 | 84 | 73 | 260 | 150,000 | 6 | 200 | 32,000 | |||||
H5 | 3040 | 3210 | 3 | 9,300 | 660 | 84 | 76 | 280 | 150,000 | 6 | 200 | 33,000 | |||||
J1 | 3210 | 3400 | 3 | 9,900 | 660 | 87 | 78 | 280 | 150,000 | 6 | 200 | 34,000 | |||||
J2 | 3400 | 3600 | 3 | 10,500 | 660 | 90 | 78 | 280 | 150,000 | 6 | 200 | 35,000 | |||||
J3 | 3600 | 3800 | 3 | 11,100 | 687.5 | 92 | 81 | 300 | 150,000 | 6 | 200 | 36,000 | |||||
J4 | 3800 | 4000 | 3 | 11,700 | 687.5 | 95 | 84 | 300 | 150,000 | 6 | 200 | 37,000 | |||||
J5 | 4000 | 4200 | 3 | 12,400 | 687.5 | 97 | 87 | 300 | 150,000 | 7 | 200 | 38,000 | |||||
K1 | 4200 | 4400 | 3 | 12,900 | 715 | 100 | 87 | 300 | 150,000 | 7 | 200 | 39,000 | |||||
K2 | 4400 | 4600 | 3 | 13,500 | 715 | 102 | 90 | 300 | 150,000 | 7 | 200 | 40,000 | |||||
K3 | 4600 | 4800 | 3 | 14,100 | 715 | 105 | 92 | 300 | 150,000 | 7 | 200 | 41,000 | |||||
K4 | 4800 | 5000 | 3 | 14,700 | 742.5 | 107 | 95 | 300 | 150,000 | 7 | 200 | 42,000 | |||||
K5 | 5000 | 5200 | 3 | 15,400 | 742.5 | 111 | 97 | 300 | 150,000 | 8 | 200 | 44,000 | |||||
L1 | 5200 | 5500 | 3 | 16,100 | 742.5 | 111 | 97 | 300 | 150,000 | 8 | 200 | 46,000 | |||||
L2 | 5500 | 5800 | 3 | 16,900 | 742.5 | 114 | 100 | 300 | 150,000 | 8 | 200 | 48,000 | |||||
L3 | 5800 | 6100 | 3 | 17,800 | 742.5 | 117 | 102 | 300 | 150,000 | 8 | 200 | 50,000 | |||||
L4 | 6100 | 6500 | 3 | 18,800 | 742.5 | 120 | 107 | 9 | 200 | 50,000 | |||||||
L5 | 6500 | 6900 | 3 | 20,000 | 770 | 124 | 111 | For ships with a length (L) of over 180m, tow ropes can be omitted. | 10 | 200 | 50,000 | ||||||
M1 | 6900 | 7400 | 3 | 21,500 | 770 | 127 | 114 | 11 | 200 | 50,000 | |||||||
M2 | 7400 | 7900 | 3 | 23,000 | 770 | 132 | 117 | 12 | 200 | 50,000 | |||||||
M3 | 7900 | 8400 | 3 | 24,500 | 770 | 137 | 122 | 13 | 200 | 50,000 | |||||||
M4 | 8400 | 8900 | 3 | 26,000 | 770 | 142 | 127 | 14 | 200 | 50,000 | |||||||
M5 | 8900 | 9400 | 3 | 27,500 | 770 | 147 | 132 | 16 | 200 | 50,000 | |||||||
N1 | 9400 | 10000 | 3 | 29,000 | 770 | 152 | 132 | 18 | 200 | 50,000 |
