Konno Kogyosho Co.

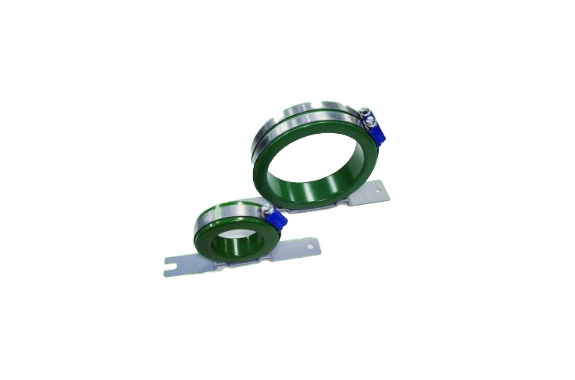

Konno Kogyosho Reactor Core EMC Noise Suppression Component
Manufacturer: Konno Kogyosho Co., Ltd.
Model: Reactor Core
Features
- The inductance can be adjusted to the optimum value by winding the power line wire or using it in parallel.
- Effective for frequencies in the hundreds of kHz range, such as AM radio.
- Easy installation with the mounting plate.
- Multi-stage configuration is possible by using it in parallel.
Specifications
| Product name | Reactor Core | |||
| Part Name | RJ8025 | RJ8035 | RJ8065 | RJ8095 |
| Material | Ferrite Core | |||
| Inductance (Note 1) | 7.4±3 μH | 8.9±3 μH | 5.6±3 μH | 6.1±3 μH |
| Inductance Characteristics | – | – | – | – |
| Impedance Characteristics | – | – | – | – |
| Mechanical Data | – | – | – | – |
| Operating ambient temperature | -20 to +50°C | -20 to +50°C | -20 to +50°C | -20 to +50°C |
| Operating ambient humidity | 30% to 90% RH (No dewdrops) | 30% to 90% RH (No dewdrops) | 30% to 90% RH (No dewdrops) | 30% to 90% RH (No dewdrops) |
| Storage ambient temperature | -25 to +85°C | -25 to +85°C | -25 to +85°C | -25 to +85°C |
| Storage ambient humidity | 10% to 95% RH (No dewdrops) | 10% to 95% RH (No dewdrops) | 10% to 95% RH (No dewdrops) | 10% to 95% RH (No dewdrops) |
- Note 1: Agilent 4263B LCR METER, 25°C, Frequency 10KHz/1V, 1 turn
