Kosaka Laboratory Ltd.

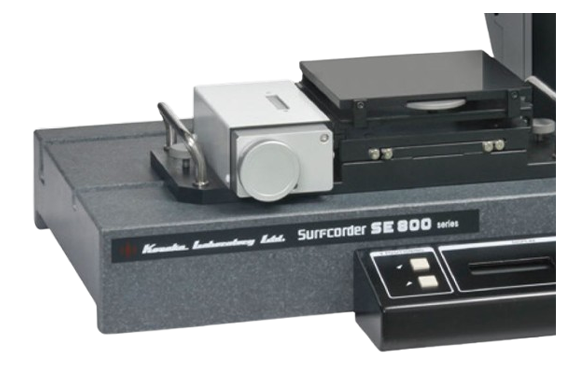

Kosaka Laboratory 3D Measurement
Manufacturer: Kosaka Laboratory Ltd.
Features
3D surface roughness measuring function is added to enable deep evaluation of a target surface with respect to a line and a plane.
- Parallel processing of analysis and measurement
- Recording bird’s-eye view or a differential contour
- Max. 100 million sampling points with high resolution
Specification
| Stage size | 150 x 150 mm |
|---|---|
| Leveling range | 1°( X , Y ) |
| Motion range of the stage | 50 mm |
| Minimum stepping range | 1 μm |
| Maximum load | 5 kg |
| Dimensions/Weight | W 312 x D 150 x H 70 mm / Approx 8 kg |
