Kosaka Laboratory Ltd.

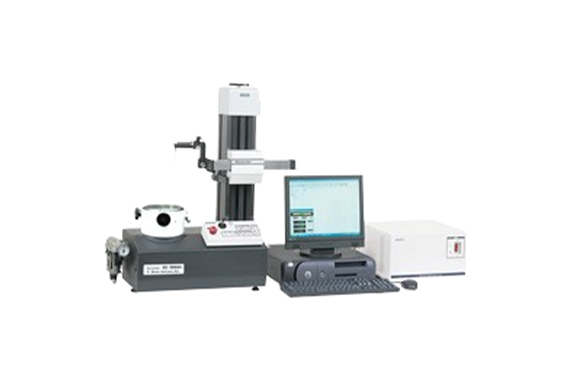

Kosaka Laboratory EC1550H
Manufacturer: Kosaka Laboratory Ltd.
Model: EC1550H
Features
- EC1550HA is proud of high rotation accuracy. Desk top type with user friendly cylindricity evaluation function is supplied.
- Full posture pick-up
- Guarantee Z axis straightness accuracy
- EC1550HA enables measurement of ring groove waviness.
Specification
| Mechanism / system | Porous static pressure air bearing system / table rotation type |
|---|---|
| Rotation accuracy | (0.02 + 0.0004H) μm H: height from table surface (mm) |
| Max. measuring diameter | φ368 mm both inner and outer diameters |
| Loading capacity | 25 kg |
| Z traverse range | 250 mm (at the use of b-type stylus arm) |
