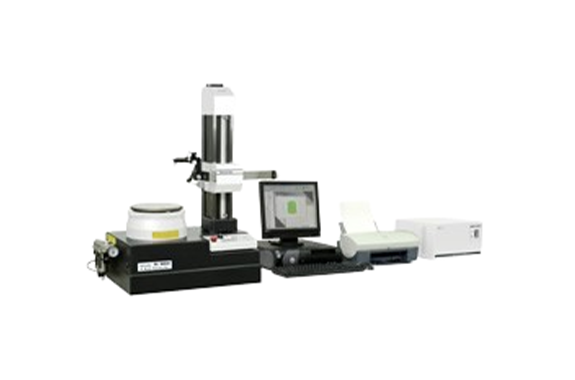

Kosaka Laboratory EC1850H
Manufacturer: Kosaka Laboratory Ltd.
Model: EC1850H
Features
- EC1850H supplies full automatic capability from centering/tilting to datasheet printing, with high-precision automatic table mounted.
- Full automation of centering and tilting adjustment
- Automatic measurement
Specification
| Mechanism / system | Porous static pressure air bearing system / table rotation type |
|---|---|
| Rotation accuracy | (0.02 + 0.00035H) μm H: height from table surface (mm) |
| Max. measuring diameter | φ368 mm both inner and outer diameters |
| Loading capacity | 25 kg |
| Z traverse range | 300 mm (at the use of b-type stylus arm) |
