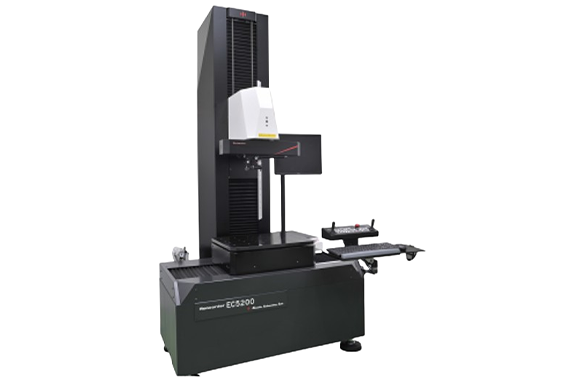

Kosaka Laboratory EC5200
Manufacturer: Kosaka Laboratory Ltd.
Model: EC5200
Features
EC5200 is proper model for heavy duty workpiece. Space saving type with auto centering, tilting, flattering table is mounted.
Specification
| Mechanism / system | Porous static pressure air bearing system / table rotation type |
|---|---|
| Rotation accuracy | 0.05 μm |
| Max. measuring diameter | φ600 mm both inner and outer diameters |
| Loading capacity | 200 kg |
| Z traverse range | 1000 mm (at the use of b-type stylus arm) |
